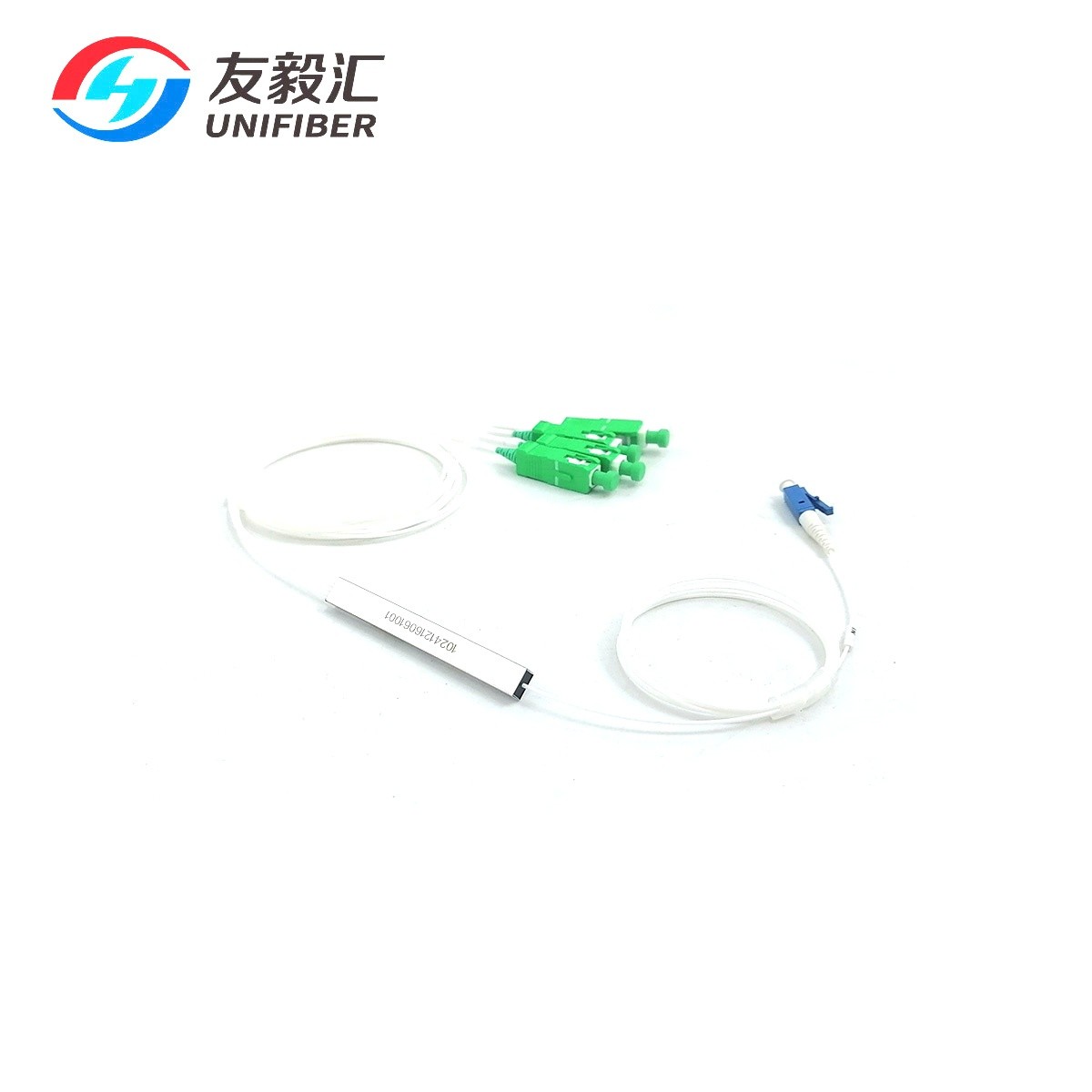

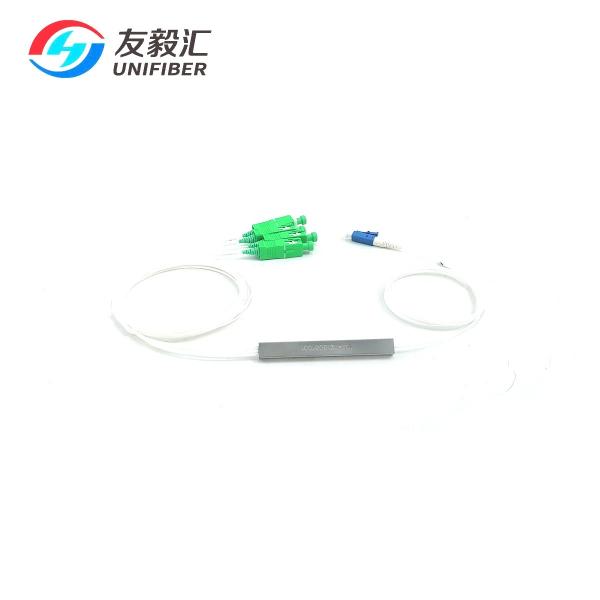

Polarization Maintaining Planar Lightwave Circuit (PLC) Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross−coupling of optical power between the polarization modes.
Features
Excellent Environmental Stability
Excellent Mechanical
High Extinction Ratio
Low Polarization Dependent Loss
Good channel-to-channel uniformity
Application
FTTx Systems
EDFA & Raman Amplifier
Fiber Sensor
Fiber Optical Instrument
Power Monitoring System
Specification
|
Parameters
|
Specifications
|
Unit
|
|
Channel Number
|
1×4
|
/
|
|
Operation Wavelength
|
1310±30
|
nm
|
|
Test Wavelength
|
1310
|
nm
|
|
Insretion Loss1
|
≤7.2
|
dB
|
|
ER
|
≥18
|
dB
|
|
Uniformity
|
≤0.6
|
dB
|
|
Wavelength Dependent Loss
|
≤0.5
|
dB
|
|
Return Loss
|
≥50
|
dB
|
|
Directivity
|
≥55
|
dB
|
|
Fiber Type
|
1310 PM Panda Fiber
|
/
|
|
Pigtail
|
Input:0.9mm Loose Tube
|
/
|
|
Output:0.9mm Loose Tube
|
/
|
|
Casing color
|
White
|
/
|
|
Fiber length
|
1.0±0.05
|
m
|
|
Connector
|
Input:LC/UPC
|
/
|
|
Output:SC/APC
|
/
|
|
Package Dimension
|
L60xW7xH4
|
mm
|
|
Operation Temperature
|
-10 ~ +65
|
℃
|
|
Storage Temperature
|
-40 ~ +85
|
℃
|
|
|
|
