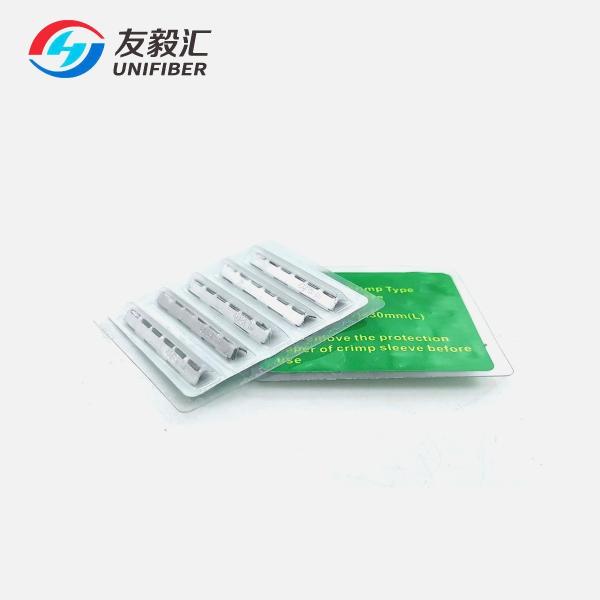

This mechanical sandwich splice protector type which protects the fiber splice against mechanical demage and moisture.it consist of a V shape metal support coated with a permanently elastic sealing compound on the two insides. This design gives the splice sufficient strenght and protection against pull.The product is easy to install and requires no heat shrink, curing, crimping or gluing.The installed splice protector is stored in a dedicated splice holder available for this purpose.

Design:
The sandwich splice protector consist of a V shape metal support coated with a
permanently elastic sealing compound on the two insides. This design gives the splice
sufficient strenght and protection against pull.
The product is easy to install and requires no heat shrink, curing, crimping or gluing.
The installed splice protector is stored in a dedicated splice holder available for this
purpose.

Materials:
The V shape part is made of aluminium sheet.
The permanently elastic sealing compound is a special synthetic material.
Product Properities:
High of the protector after crimping: H=1.1 mm +/-0,1mm
Width of the protector after crimping: W=3.2mm+/-0.1mm
Length of the protector after crimping: L=30mm +/-0.5mm
Opening angle of the protector before crimping: Ø=60°+0/-5°
Mechanical protection
Flexible laying
Waterproof and hermetic protection
Very short installation time
RoHS compliant
Packing:150pcs to one carton

Highlights:
Aluminium metal base with durable plastic
Easy and fast installation
For all optical fibers up to 250µm
No Chemicals needed
Without using external energy such as heatsource, etc.
No increase in attenuation
Corrosion-restiant
Working Temperature: -25°C up to +60°C
