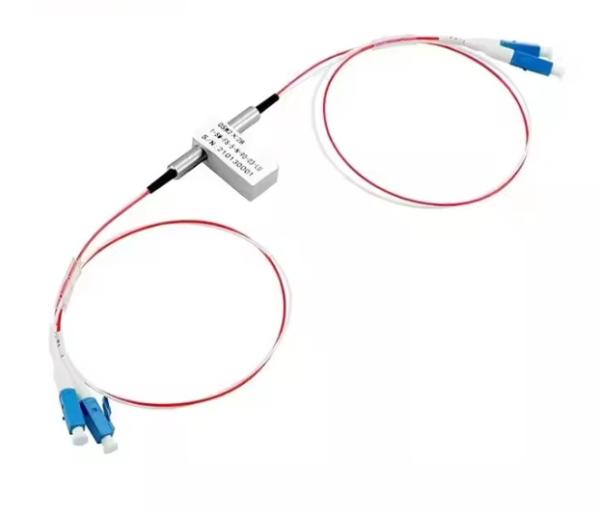

1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC

    Buy cheap 1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC from wholesalers

    Buy cheap 1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC from wholesalers
    • Buy cheap 1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC from wholesalers
    • Buy cheap 1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC from wholesalers
    • Buy cheap 1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC from wholesalers

    1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC

    Ask Lasest Price
    Brand Name : UNIFIBER or OEM
    Model Number : Mechanical Optical Switch
    Certification : ROHS
    Price : 10~20$
    Payment Terms : T/T
    Supply Ability : 1000PCS/Day
    Delivery Time : 5~8days
    • Product Details
    • Company Profile

    1x2 2x2 Bypass Mechanical Optical Switch Non-Latching 1310/1550nm 5V LC/UPC

    Mechanical Optical Switch is used to turn on, turn off and switch optical signal. It is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.


    Features

    * Unmatched Low Cost

    * Low insertion Loss

    * High Channel Isolation

    * High Stability, High Reliability

    * Epoxy-free on Optical Path

    * Latching or Non-latching


    Applications

    * Ring Network

    * Protection/Restoration

    * Remote Monitoring in Optical Network

    * Configurable Optical Add/Drop

    * Transmitter and receiver protection

    * Network Test System


    Parameters
    Unit
    Mechanical Optical Switch
    Wavelength Range
    nm
    850±40 / 1300±40
    1260 ~ 1650
    Test Wavelength
    nm
    850 / 1300
    1310 / 1550
    Insertion Loss 1, 2
    dB
    Typ: 0.6 Max: 1.0
    Typ: 0.6 Max: 1.0
    Return Loss 1, 2
    dB
    MM ≥ 30 SM ≥ 50
    Crosstalk 1
    dB
    MM ≥ 35 SM ≥ 55
    PDL
    dB
    ≤0.05
    WDL
    dB
    ≤0.25
    Repeatability
    dB
    ≤±0.02
    Operating Voltage
    V
    3.0 or 5.0
    Durability
    Cycles
    ≥ 10 Million
    Switching Time
    ms
    Typ: 3 Max: 8
    Optical Power
    mW
    ≤500
    Operating Temperature
    -20 ~ +70
    Storage Temperature
    -40 ~ +85
    Relative Humidity
    %
    5 ~ 95
    Weight
    g
    14
    Dimension
    mm
    (L)27.0×(W)12.0×(H)8.2 ±0.2
    Note: 1.Within operating temperature and SOP.
    2.Excluding Connectors.
