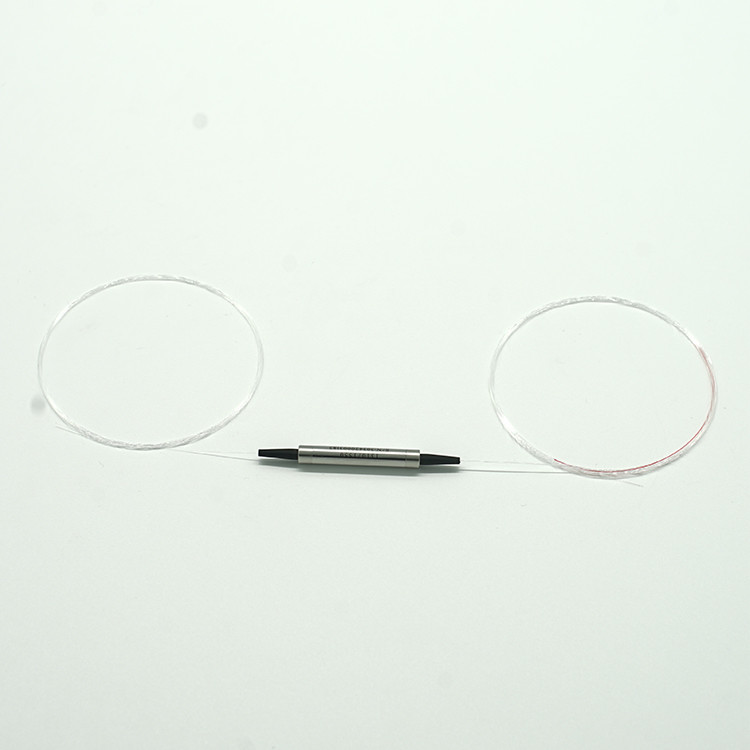

980nm 1550nm WDM Tap Coupler Isolator Hybrid Combination For Amplifier

Product Categories

Shenzhen Unifiber Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	UNIFIBER-OEM
Model Number :	980/1550nm WDM-Tap Coupler-Isolator Hybrid Combination
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000pcs/day
Delivery Time :	3~5 business days

Add to Cart

Features	Applications
Wide operating wavelength range	Fiber optic amplifier
Low insertion loss	CATV fiber optic link
High channel isolation	WDM system
Ultra low PDL & PMD	Fiber optic instrument
High stability and reliability	Transmitter and fiber laser
Epoxy free on optical path	Laboratory R&D

Parameter		Single Stage	Dual Stage
Signal Operation Wavelength Range (nm)	C band	1530 ~ 1565
Pump Channel Wavelength Range (nm)		960 ~ 990
Isolation (dB) (Over signal wavelength range @23℃, all SOP)		≥30	≥42
Wavelength Isolation (dB) (4 to 2 @λ signal)		≥15
Wavelength Isolation (dB) (1 to 2 or 2 to 1 @λ pump)		≥30
Insertion Loss ( over wavelength range and 0 to +70℃, all SOP) (dB)	Pump Channel	≤0.6
	Signal Channel	≤1.3	≤1.4
	Tap Ratio 1%	19.0~21.0
	Tap Ratio 2%	16.2~18.0
	Tap Ratio 5%	12.2~14.0
Temperature Dependent Loss (dB)		≤0.25	≤0.3
Wavelength Dependent Loss (dB)		≤0.5
Return Loss (dB)		≥50
Directivity (dB)		≥50
PDL (dB)		≤0.15	≤0.2
PMD (ps)(Low PMD Option)		≤0.05	≤0.05
Power Handling (mW)		300
Operating Temperature (℃)		-10 ~ +75
Storage Temperature(℃)		-40 ~ +85
Package Dimension (mm)		Φ5.5 x L38
Fiber Type		Corning HI 1060 fiber at common / pump port
		Corning HI 1060 fiber or SMF-28e fiber at common port
		Corning SMF-28e fiber at signal port

1.Above specifications are for devices without connector.

2.Specifications may change without notice.

980nm 1550nm WDM Tap Coupler Isolator Hybrid Combination For Amplifier
