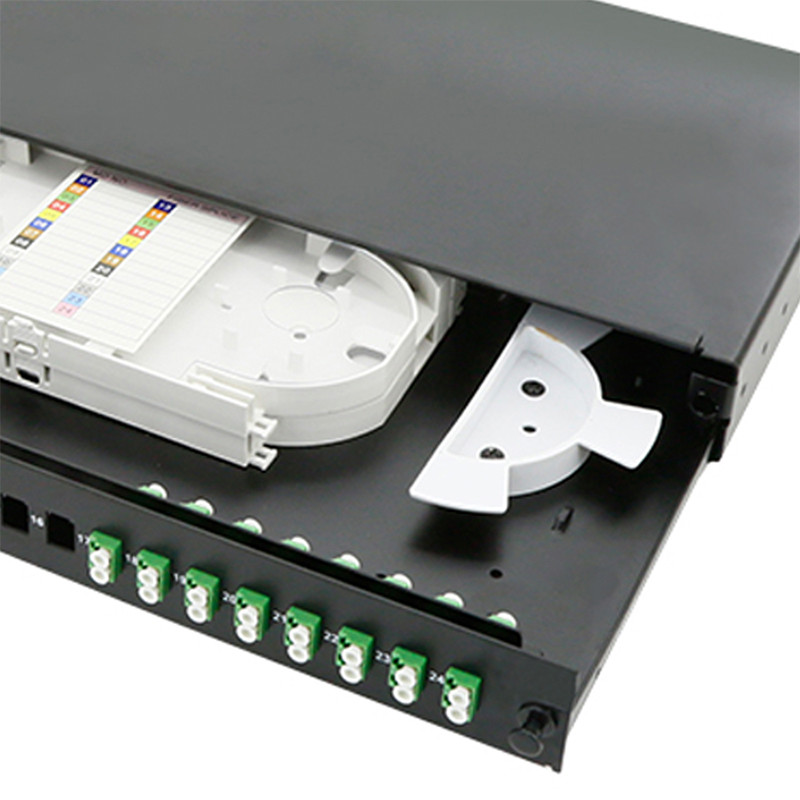

1U 19" 24 Port Single Mode LC Duplex Fiber Patch Panel made with high quality cold rolled steel, it is suitable for SC simplex or LC duplex fiber optic adapters, customer can choose the box with pigtails and adapters pre-loaded at the factory or empty box, UNIFIBER also can support customized designs per specific requirements.

Features

Standard 1U 19 inches rack mount installation

With siliding drawer for easy operation

Suitable for ribbon and bunchy fiber cable

Support 12,24,32,48 splices, max.48 splice

Support for SC simplex or LC duplex adapters

Application:
Fiber to the home (FTTH)

​LAN/WAN/CATV
Telecommunications subscriber loop
