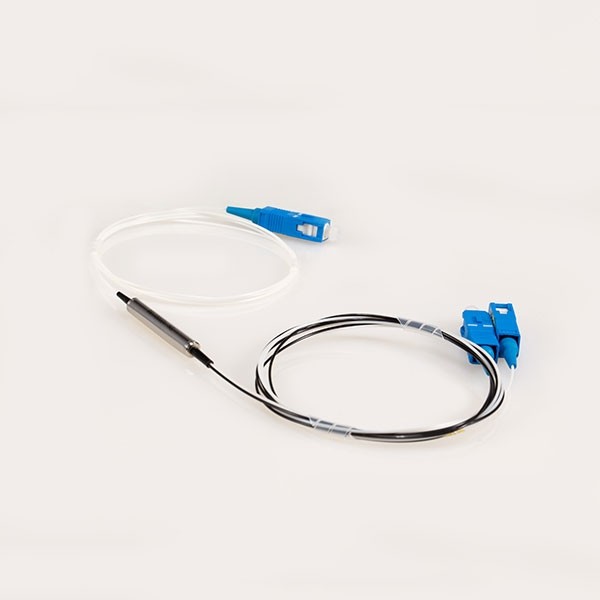

1060nm polarization insensitive optical circulator utilizes proprietary designs and metal bonding micro optics packaging. It provides low insertion loss, broad band high isolation, low PDL, excellent temperature stability and optical path epoxy free. It can be used for wavelength add/drop, dispersion compensation and EDFA application.

Features:

High Stability and Reliability

Epoxy-free on Optical Path

LossWide Band High Isolation

Low PDL

Low Insertion

Applications:

Optical Amplifier
Wavelength Add/Drop
Dispersion Compensation

Metro Area Network

Specification

Parameter		Specification
Operating Wavelength(nm)		1055~1065
Isolation(dB)	Tipical	25
	Minimum	20
Insertion Loss(dB)	Tipical	1.8
	Maximum	2.2
Cross Talk(dB)		45
Return Loss(dB)		50
Polarization Dependent Loss(dB)		0.2
Operating Temperature(℃)		0~+50
Storage Temperature(℃)		-40~+85
Fiber Type		Corning HI 1060 Fiber
Package Dimension(LxWxH)(mm)		L34×W8.4×H8.4
Power Handling (mW)		300
