Brand Name : | UNIFIBER-OEM |

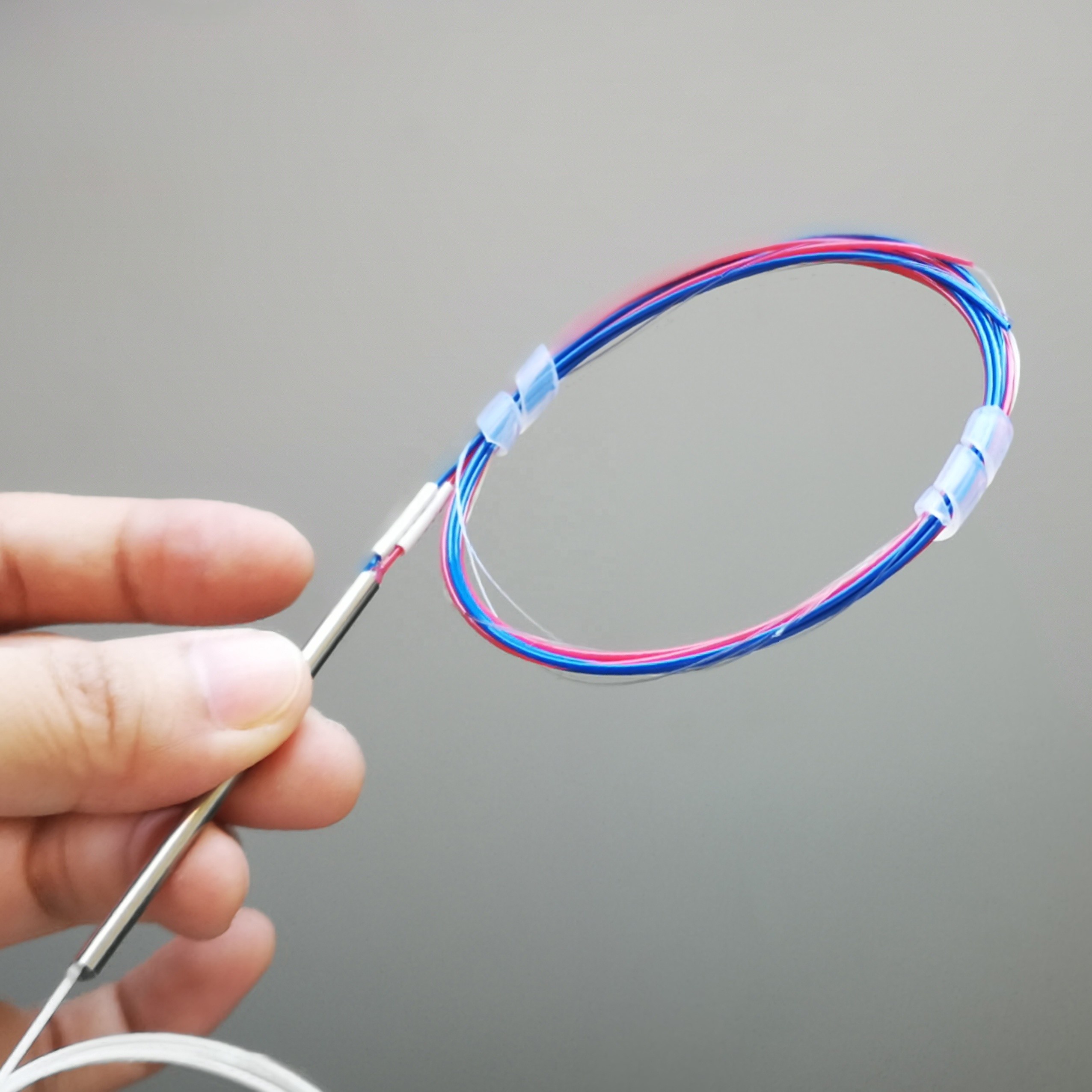

Model Number : | 1310/1550nm Single Mode 1x2 Fused WDM Coupler |
Certification : | ROHS |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000pcs/day |
Delivery Time : | 3~5 business days |
1310/1550 WDM can be used to combine or split 1310nm and 1550nm optical signals, which double the fiber transmission capability and ensure bi-direction communication in a single fiber
Features
Ultra Low Insertion Loss
Ultra High Isolation
Low Polarization Sensitivity
High Stable & Reliable
Application
Telecommunications
CATV
Subscriber Loop
Local Area Networks
Parameter | WA | WB | WC | |
Grade | P | A | P | P |
Insertion Loss(Max)(dB) | 0.3 | 0.4 | 0.7 | 1.2 |
lsolation(Min.)(dB) | ≥17 | >16 | >34 | >45 |
PDL(dB) | ≤0.05 | <0.10 | <0.10 | <0.15 |
Operating Wavelength (nm) | 1295 ~ 1325/1528 ~ 1565 | |||
Return Loss (Min.) (dB) | ≥55 | |||
Directivity(dB) | ≥55 | |||
Operating Temperature (℃) | -10~+70 | |||
Storage Temperature (℃) | -40~+85 | |||
Fiber Pigtail Length (m) | 1 m or custom length | |||
Fiber Type | Corning singlemode SMF-28 | |||
Port Configuration | 1x2 or 2x2 |
![]() |
