Brand Name : | UNIFIBER-OEM |

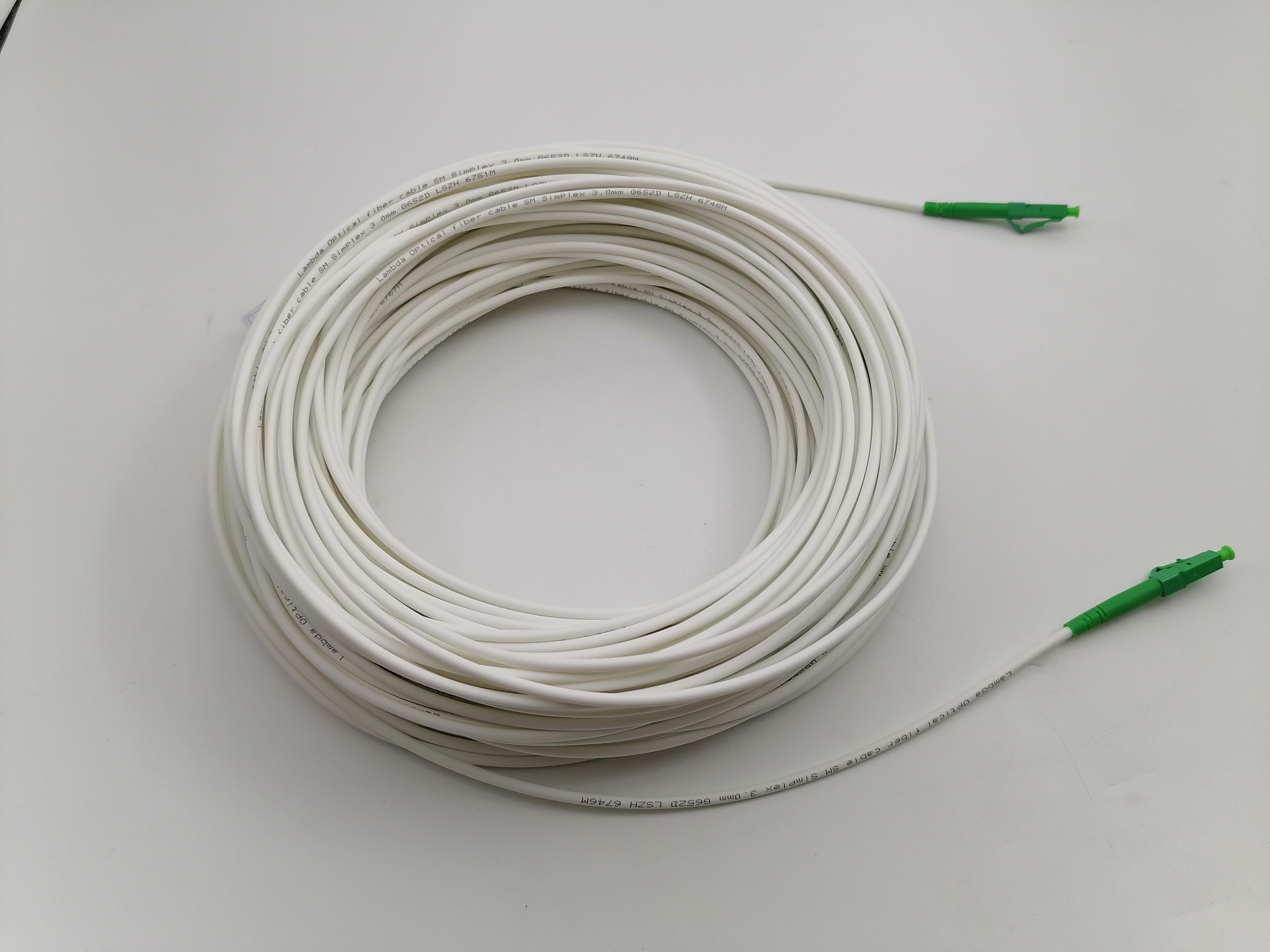

Model Number : | lc apc fiber patch cord |
Certification : | ROHS |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000pcs/day |
Delivery Time : | 3~5 business days |
Unifiber provide a full range of optical fiber connectors according to customer needs, From single-fiber optical connectors to high-density multi-fiber optical connections, The optical cable can provide simplex, duplex, and mini-dual parallel, and the connector can provide SC / FC / LC / ST / MU / MT-RJ / E2000 / SMA and so on.
Features
Low insertion loss and hight return loss.
Excellent repeatability and changeability
Simplex and duplex available.
With ceramic fettules.
PVC&LSZH cable option.
Optical performance 100% factory test.
Application
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
FTTx solution
Specification
Model | Single Mode (G652D,G657A1,G657A2,G657B3) | Multi Mode (OM1,OM2,OM3,OM4) | |
Polish | UPC | APC | PC |
Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
Return Loss | ≥50dB | ≥60dB | ≥45dB |
Test Wavelength | 1310/1550nm | 850/1310nm | |
Durability(500 Matings) | ≤0.2dB | ||
Operating Temperature | -45℃~+80℃ |
![]() |
