Single Fiber CWDM Wavelength Division Multiplexer 4 8 12 16 18Ch

Ask Lasest Price
Brand Name :	UNIFIBER-OEM
Model Number :	4 8 12 16 18Ch Single Fiber CWDM MUX/DEMUX Module
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000pcs/day

Add to Cart

Product Details
Company Profile

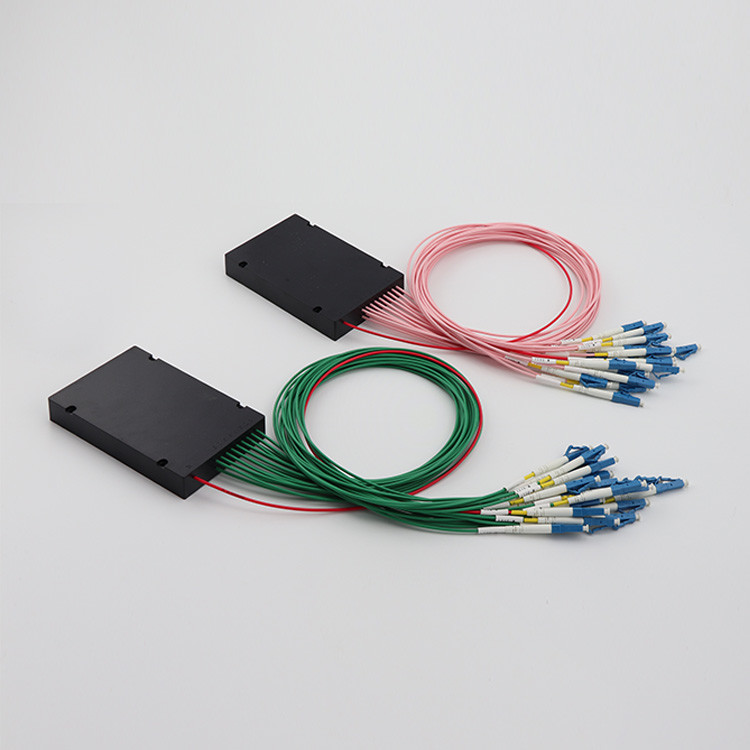

Single Fiber CWDM Wavelength Division Multiplexer 4 8 12 16 18Ch

CWDM are based on thin film filter technology,used for network expansion,suitable for 4G and 5G network.Especially for 5G Fronthaul AAU/BBU widely with 10G,25G or other type optical transceiver. UNIFIBER provide up to 18Ch module,achieve bidirectional MUX/DEMUX over single fiber.
Under 18Ch CWDM,available with UPG port.Up to 18Ch will be w/o UPG port.All types of number channel can support Monitor port,1% or 2% optional.In generally,WDM module,LGX and Rack Mount(Chassis) all have three types about MUX DEMUX:
1.MUX-from the first channel to the final channel-insertion loss from low to high
2.DEMUX-from the first channel to the final channel-insertion loss from high to low
3.MUX/DEMUX in one-MUX part from the first channel to final channel-insertion loss from low to high,DEMUX part from the first channel to final channel-insertion loss from high to low

Features

Low insertion loss

Wide pass band

High channel isolation

High stability and reliability

Epoxy free on Optic path

Application

Line monitoring

WDM network

Telecommunication

Cellular application

Fiber Optic amplifier

Access network

Specification

arameter	Unit	Value
Channel Number	CH	2	4	8	18
Channel Space	nm	20
Central Wavelength	nm	1270~1610(1271~1611)
Operating wavelength	nm	1260-1620
Center wavelength accuracy	nm	±0.5
Passband(@-0.5dB bandwidth)	nm	±7.5
Pass band Flatness(Ripple)	dB	≤0.5
Insertion Loss (Max.)	dB	1.0	1.5	2.5	3.2
Adjacent Channel Isolation	dB	≥30
Non-adjacent Channel Isolation	dB	≥45
Polarization Mode Dispersion	ps	≤0.1
Polarization Dependent Loss	dB	≤0.1
Directivity	dB	≥50
Return Loss	dB	≥45
Insertion Loss Temperature Sensitivity	dB/°C	0.005
Wavelength Temperature Shifting	nm/°C	0.002
Operation Temperature	°C	-5~+70
Storage Temperature	°C	-40~+85
Package Dimension	mm	ABS Box

Single Fiber CWDM Wavelength Division Multiplexer 4 8 12 16 18Ch
