    32 Core Wall Mount 13.5mm ftth distribution box ABS Material

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : 32 core wall mount fiber distribution terminal box
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    32 Core Wall Mount 13.5mm ftth distribution box ABS Material

    New Designed Mini 32 core wall mount multi-operation fiber distribution terminal box

    This new Compact Type FTTH Optical Distribution Box is an intelligent solution to facilitate access between the operator’s infrastructure and the internal network of buildings. So that it stands out as one single structure. The installation is performed modularly and independently by each operator,These units can be coupled together and therefore different operators may be connected to the building’s internal network.


    Features:

    PRIMARY AND SECONDARY MODULE
    Their modularity allows a connection between Primary and Secondary within both splitters.
    The secondary module receives the riser cable of the building and the Primary Module receives the cable from the telecommunications operator.

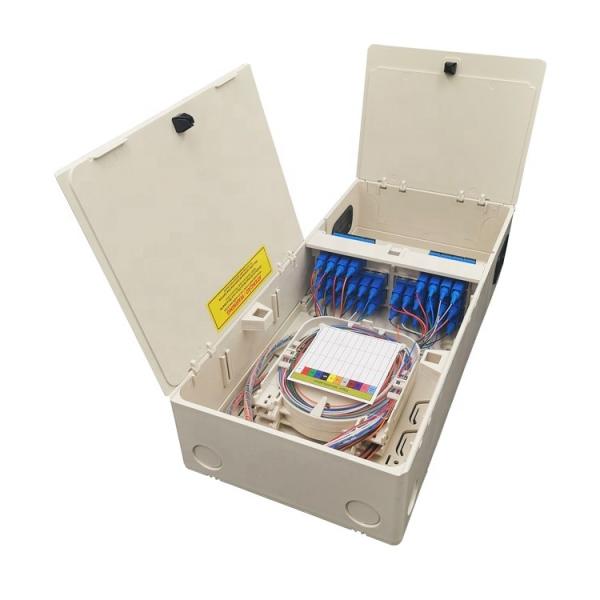

    The units are composed of two compartments, one for fusing fibres organized in cassettes and another compartment for the passage of connecting patch cords between the operator and client.

    The box have a multi-operator function, meaning that after the installation of Primary Operator A, a more independent form of one or more units of other operators may be installed.

    The adapter panel is removable so that it can be easily mounted with adapters.Both covers can be disassembled; the organizer cassettes open like a flip book and can be removed at any time.



    Application:

    Widely used in FTTH access network
    Telecommunication networks
    Data communications networks
    Local area networks

    CATV networks
    Optical fiber communication
    FTTX
    Fiber optic network convergence
    Optical fiber access network
    Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting.


    Specification

    Max Capacity32 fibers SC/APC, 3 pcs of 1x8 PLC Splitter
    Dimensions323X150X72mm
    MaterialLSZH ABS Plastic
    Lock¼ turn plastic closing with optional key lock
    Cable entries4 single entries through a packing gland
    Cable dimensions13.5mm
    Patchcord routing2 in the connection compartment
