Outdoor IP65 Caixa CTO Ftth Terminal Box 1 In 8 Out Huawei Mini SC

Outdoor IP65 Caixa CTO ftth terminal box 1 in 8 out huawei mini SC is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.

FEATURES
Water-proof design with IP-65 Protection level.

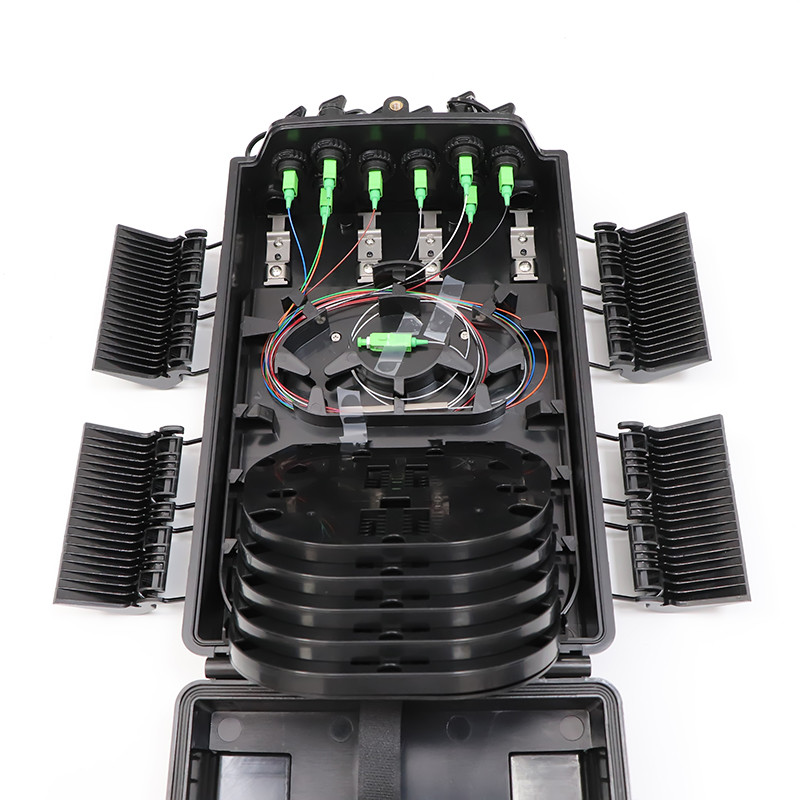

Integrated with flap-up splice cassette and adapter holder.

Plug-and-play installation, easy for maintenance and expansion.

Fiber bend radius control more than 40mm.

180 degree access with buckled lock structure.

1*8 PLC splitter can be installed in each splice tray as option.

8 pcs of pre-installed reinforced water-proof adapter for Mini-SC

1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable(8-16.5mm).

APPLICATION
Wall-mounted Installation

Pole-mounted Installation

Aerial-hanging Installation

Suitable for Huawei pre-connectorized drop cable with reinforced connector.

Specification
