    Huawei SC Waterproof Outdoor Fiber Termination Box For FTTH

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : Outdoor 8/16 Ports FTTH Caja Nap ofc termination box
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

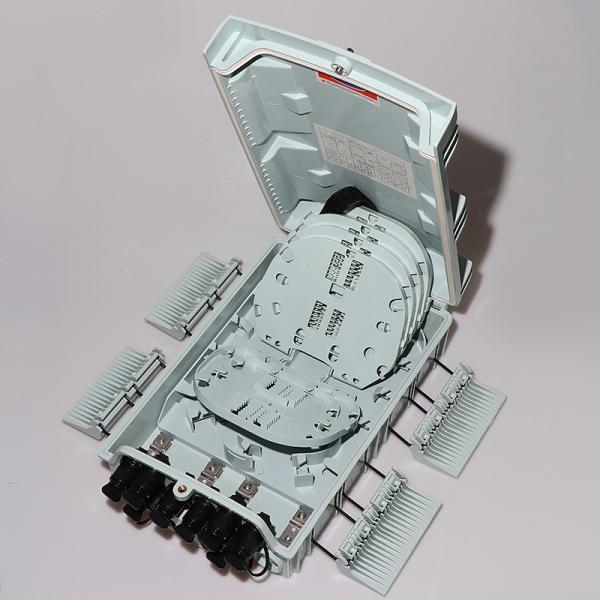

    Huawei SC Waterproof Outdoor Fiber Termination Box For FTTH

    Outdoor 8/16 Ports FTTH Caja Nap Ofc Termination Box With Huawei Mini SC Waterproof Connector


    FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.


    FEATURES

    1*8 PLC splitter can be installed in each splice tray as option.

    8 pcs of pre-installed reinforced water-proof adapter for Mini-SC

    Water-proof design with IP-65 Protection level.

    Integrated with flap-up splice cassette and adapter holder.

    Plug-and-play installation, easy for maintenance and expansion.


    APPLICATION

    Pole-mounted Installation

    Aerial-hanging Installation

    Wall-mounted Installation

    Suitable for Huawei pre-connectorized drop cable with reinforced connector.


    Specification

    Material
    Max CapacitySize
    Max Capacity
    Reinforced Adapter
    Weight
    Color
    PC +ABS
    L*W*H(mm)
    Splice 120 Fibers
    PLC
    8 pcs Mini-SC
    1.2kg
    Grey/Black
    345*220*95
    (5 trays x 24F)
    1x8(SC)
