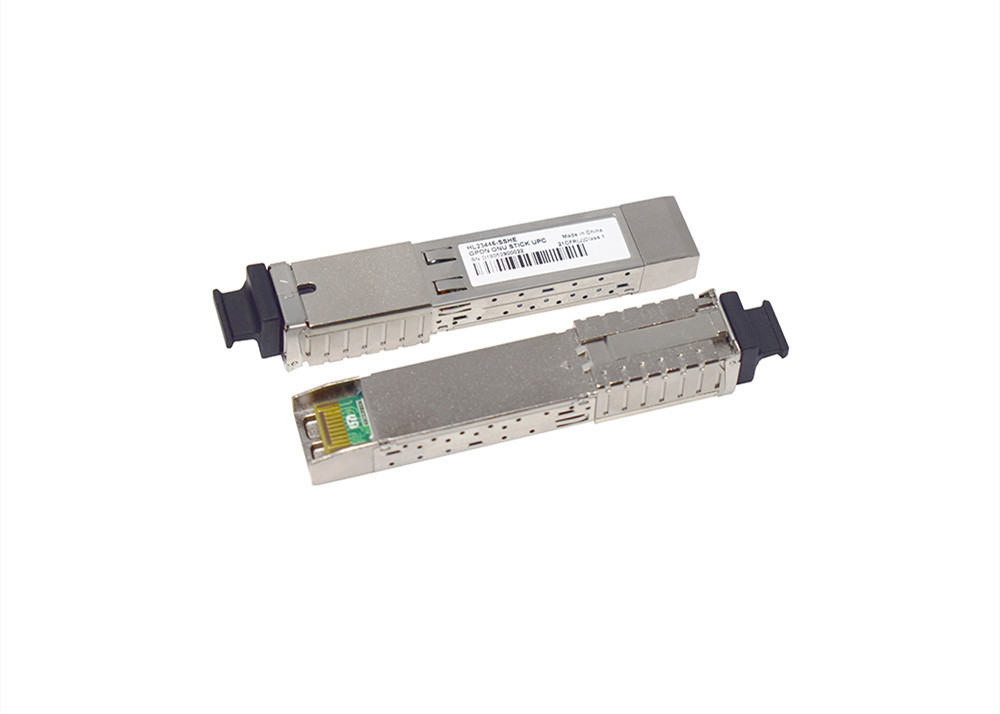

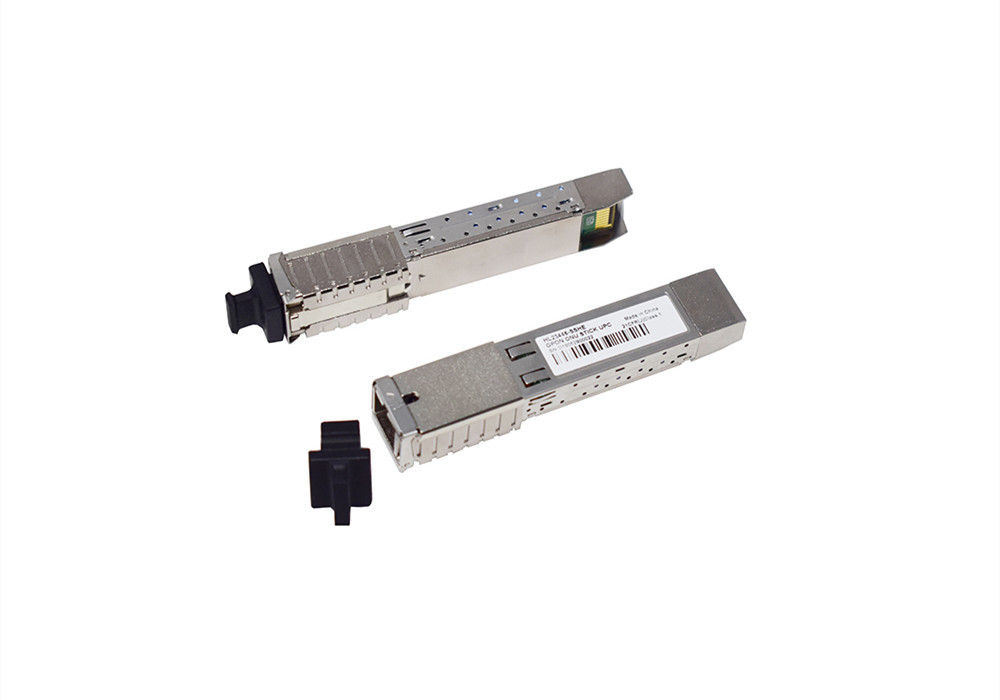

Huawei 1.25G/2.5G GPON ONU SFP Tx1310/Rx1490nm Class B+ SC Receptacle, I-Temp, Low Transmit Enable

GPON SFP with MAC is a G.984.2 (GPON) Optical Network Terminal (ONT) with Small Form-factor Pluggable (SFP) packaging. This product integrates a bi-directional optical transceiver function and GPON MAC function. By being plugged into the customer premise equipment (CPE) with standard SFP port directly, it provides an asymmetric 1.244Gbps upstream / 2.488 Gbps downstream GPON uplink to the CPE without requiring separate power supply.This product supports a sophisticated ONT management system, including alarms, provisioning, DHCP and
IGMP functions for a stand-alone IPTV solution at the ONT.This product supports Time of Day and 1PPS interface, can be managed from the OLT over the GPON using G.988 OMCI. It fits seamlessly into existing communications equipment, providing service providers with a
smooth upgrade to GPON. The solution vastly decreases the installation costs of deploying fiber access in MDUs and enables service providers to improve their revenue streams while decreasing OPEX.

Features

Single fiber bi-directional data links

1310nm DFB laser transmitter and 1490nm Super-TIA receiver

1.244Gbps burst mode transmission

2.488Gbps continuous mode receiver data rate

SFP 2x10 package with SC/UPC Receptacle Connector

Single 3.3V power supply  Digital diagnostic monitoring interface

LVPECL compatible data input/output interface

Provide TX burst mode signal detect function

LVTTL transmitter laser fault alarm

Low EMI and excellent ESD protection

Class I laser safety standard IEC-60825 compliant

RoHS6 Compliance Applications

Gigabit Passive Optical Networks (GPON)

Applications
Gigabit Ethernet Passive Optical Network (GPON) ONU
