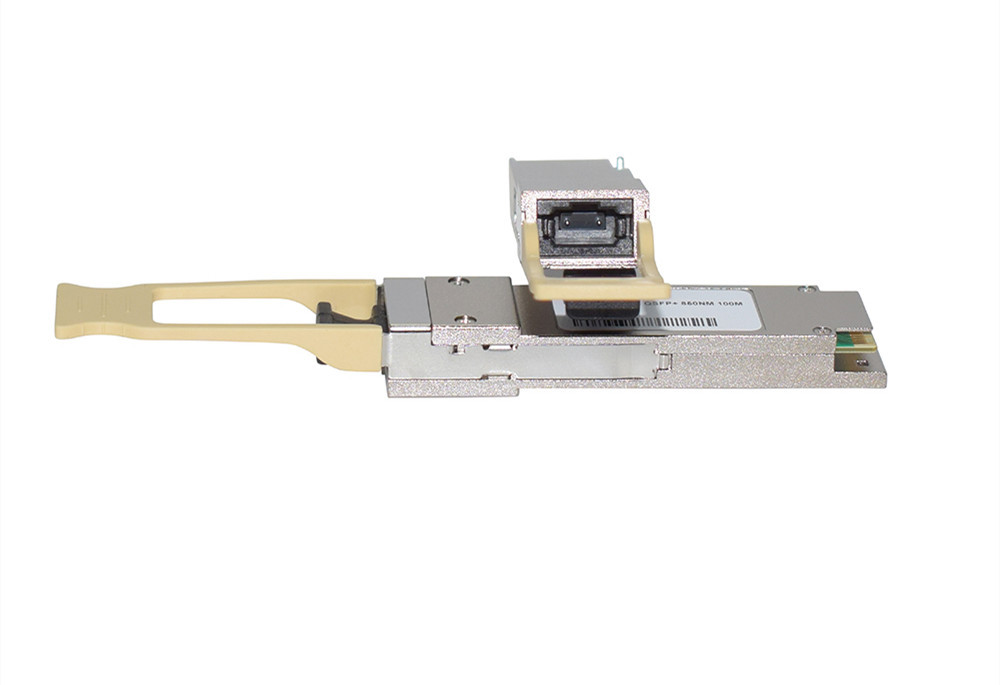

40GBASE QSFP+ SR4 MTP/MPO Multimode MMF 850nm SFP Tansceiver 150m

Multi-Mode InfiniBand SDR DDR QDR 40G QSFP+ Transceiver MPO Connector 40G 850nm 100m/300m QSFP SR4 It integrates four data lanes in each direction with 40 Gbps bandwidth. And these modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 12 fiber MPO connector.

Features :
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 100m Transmission on OM3 multi-mode ribbon fiber
Single +3.3V power supply
Operating case temperature:0~70C
Maximum 1.5W operation power
RoHS-6 compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ MSA:SFF-8436

Applications :
40G Ethernet
Infiniband 4X SDR DDR QDR
40G Telecom connections
