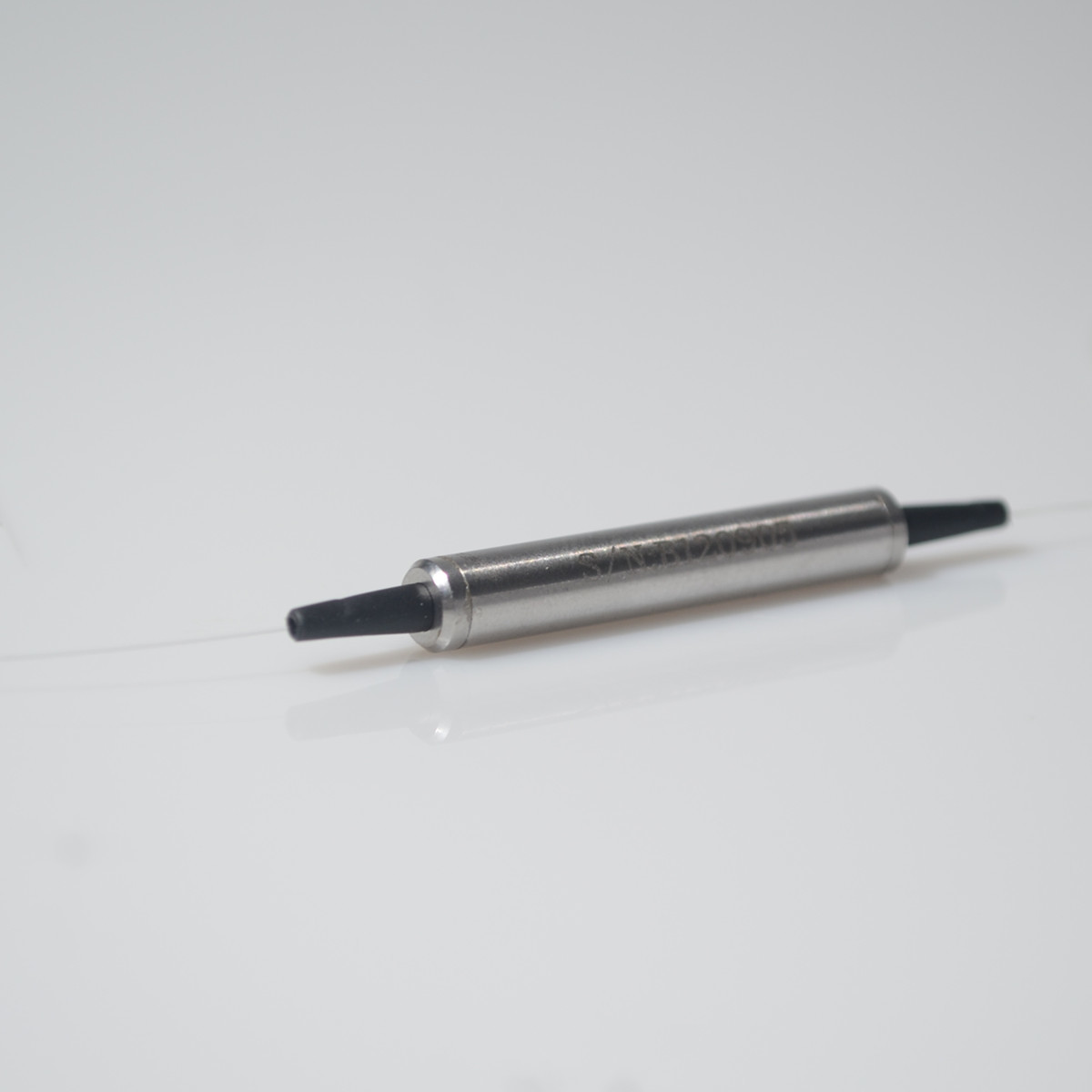

    1550nm Polarization Insensitive Fiber Optical Isolator Dual Stage

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : High Isolation 1550nm polarization-Insensitive dual stage optical isolator
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    1550nm Polarization Insensitive Fiber Optical Isolator Dual Stage

    High Isolation 1550nm Polarization-Insensitive Dual Stage Optical Isolator


    1310nm 1550nm Single stage/Dual stage Polarization-Insensitive Optical Isolator utilizes Faraday effect of Magneto optical crystal. It guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction at any polarization sate.The unique manufacturing process and optical path epoxy-free design enhance the device's high power handling capability. The devices are characterized with high performance, high reliability and low cost. It has been widely used in EDFAs, Raman amplifiers, DWDM systems, Fiber lasers, transmitters and other fiber optic communication equipments to suppress back reflection and back scattering.


    Features

    High Isolation
    Low Insertion Loss
    Ultra Low PDL & PMD
    Low Polarization Sensitivity
    Epoxy-free Optical Path


    Application

    Fiber optic Amplifiers

    CATV Fiber optic Links
    Fiber optic Systems Testing
    Fiber optic LAN Systems
    Telecommunications


    Specification

    FISO Series Optical IsolatorSingle StageDual Stage
    P GradeA GradeP GradeA Grade
    Operating Wavelength
    Bandwidth
    nm1310, 1480 or 1550
    nm±15±30
    Typ. IsolationdB≥40≥36≥50≥48
    Min. IsolationdB≥32≥30≥46≥43
    Typical Insertion LossdB0.40.60.650.7
    Max Insertion LossdB0.550.70.750.8
    Return Loss (In/Out)dB60/5560/5560/5560/55
    PDL LossdB0.50.10.10.15
    PMDdB0.150.5
    Operating Temperature°C-5~+70
    Storage Temperature°C-40~+85
    fiber TypeCorning SMF-28
    Max Optical PowermW500
    Package Dimensionmm5.5 x L30 (L38 for 900um Jacket)
