    0.9mm SC APC 1x2 1310/1550nm Fiber Optic Fused Coupler

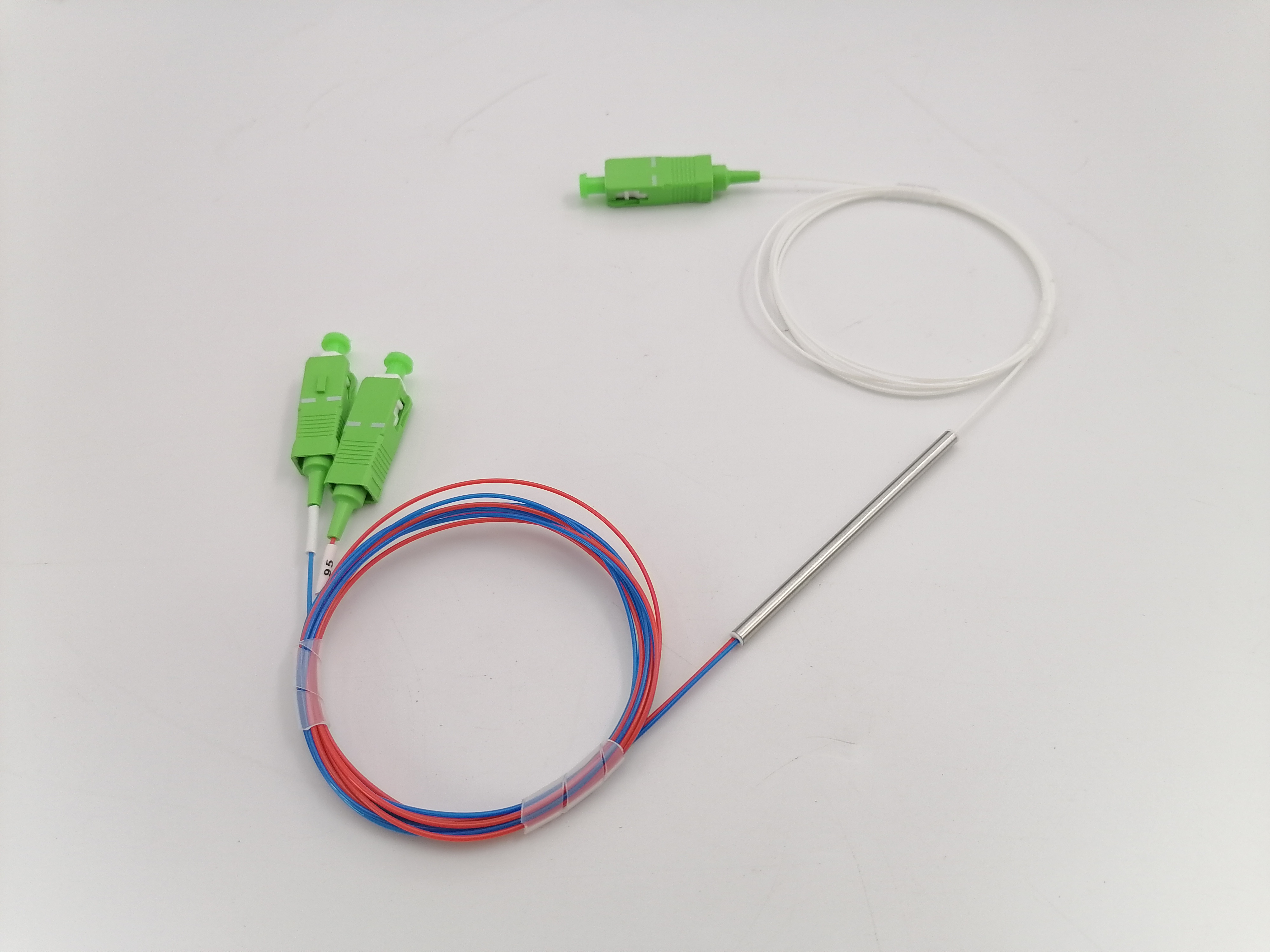

    1x2 1310/1550nm Fiber Optic Fused Coupler Steel Tube 0.9mm SC/APC 5/95

    Singlemode wideband coupler can make the optical singal re-coupled in the special couple area during the transmission, then reassigned the optical power. Optional Coupling ratio.The Singlemode Optic-fiber Tree and Star Couplers can couple the optical signals in the coupling area, and then re-distribute the light power. The key parameters include operating wavelength, bandwidth, and excess loss, coupling ratio, PDL


    Features:
    Low Insertion loss
    Low PDL
    Compact Design
    Good channel-to-channel uniformity
    Wide Operating Wavelength:From 1260nm to 1650nm
    Wide Operating Temperature: From -40°C to 85°C
    High Reliability and Stability


    Application:
    FTTX Systems
    PON Networks
    CATV Links
    Optical Signal Distribution


    Parameter
    Specification
    Channel Number
    1×2 or 2×2
    Operating Wavelength (nm)
    1310,1550,1310/1550,1310/1550/1490
    Operating Bandwidth (nm)
    ±40
    Coupling Ratio
    Coupling Ratio Insertion Loss(dB)
    P Grade
    A Grade
    50/50
    ≤3.3
    ≤3.5
    40/60
    ≤4.5/2.6
    ≤4.7/2.8
    30/70
    ≤5.7/1.9
    ≤5.9/2.1
    20/80
    ≤7.6/1.3
    ≤7.75/1.38
    10/90
    ≤10.85/0.68
    ≤11.2/0.75
    5/95
    ≤14.4/0.45
    ≤15.5 /0.48
    2/98
    ≤18.5/0.6
    ≤19.8/0.38
    1/99
    ≤21.8/0.28
    ≤22.8/0.35
    PDL (dB)
    ≤0.15
    ≤0.2
    Directivity(dB)
    ≥50
    Return Loss(dB)
    ≥55
    Parameter
    Specification
    Operating Wavelength
    nm
    Single Window1 Dual,Three Window2
    (1×N)
    N=3
    N=4
    N=5
    N=8
    N=16
    N=24
    N=32
    N=64
    Fiber Type
    Corning SMF-28e
    IL(MAX)
    dB
    5.41/5.62
    7.01/7.22
    7.81/8.02
    10.01/10.42
    13.51/13.92
    15.01/15.42
    17.31/17.52
    21.01/21.52
    Uniformity
    dB
    0.51/0.62
    0.51/0.62
    0.61/0.82
    0.81/1.02
    1.11/1.32
    1.21/1.52
    1.31/1.52
    2.11/2.52
    Return Loss
    dB
    ≥55
    Directivity
    dB
    ≥55
    PDL
    dB
    <0.20
    <0.20
    <0.30
    <0.30
    <0.40
    <0.50
    <0.50
    <0.50
