1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter

Ask Lasest Price
Brand Name :	UNIFIBER
Model Number :	1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC)
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000pcs/day
Delivery Time :	5~7 Business days

Add to Cart

Product Details
Company Profile

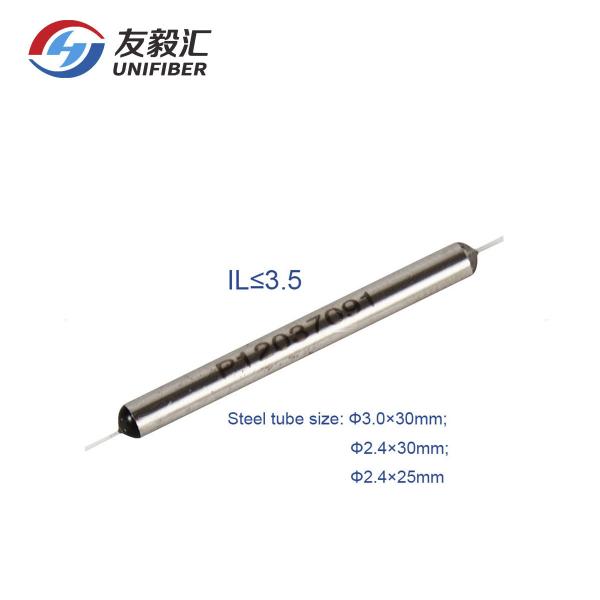

1310nm 1550nm 1x2 Single Mode WBC Fiber Optic Splitter

1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC)

1x2 Single Mode 1310nm 1550nm or C+L Band Wide Band Coupler (WBC) uses unique bandwidth expanding techniques (asymmetric techniques) to build the wide band coupler (WBC). The WBC has an operating bandwidth of ± 40nm or EDFA C band or L band, and it features low excess loss and low wavelength depend loss (WDL).

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade		P	A		P	A
Parameter
Operating wavelength (nm)		1310 ,1550 or C+L Band			C Band or L Band
Operating bandwidth (nm)		± 40			1528 ~1565 or 1570 ~1605
Typical excess loss (dB)		0.07		0.1	0.07		0.1
Insertion loss (dB)	50/50	≤3.4		≤3.6	≤3.35		≤3.5
	45/55	≤4.1/3.1		≤4.3/3.3	≤4.0/3.0		≤4.2/3.2
	40/60	≤4.4/2.6		≤4.7/2.8	≤4.4/2.55		≤4.6/2.7
	35/65	≤5.2/2.3		≤5.5/2.5	≤5.1/2.2		≤5.3/2.4
	33/67	≤5.4/2.2		≤5.7/2.3	≤5.3/2.1		≤5.5/2.25
	30/70	≤5.7/1.9		≤6.0/2.0	≤5.7/1.85		≤5.9/1.95
	25/75	≤6.6/1.7		≤7.0/1.8	≤6.5/1.65		≤6.8/1.75
	20/80	≤7.6/1.25		≤8.0/1.3	≤7.55/1.25		≤7.8/1.3
	15/85	≤9.2/1.0		≤9.6/1.2	≤9.0/1.0		≤9.3/1.1
	10/90	9.55~10.65/≤0.65		9.3~10.9/≤0.8	9.55~10.60/≤0.65		9.35~10.85/≤0.8
	5/95	12.40~13.80/≤0.4		12.10~14.10/≤0.5	12.45~13.75/≤0.4		12.15~14.05/≤0.45
	3/97	14.50~16.15/≤0.3		14.15~16.50/≤0.4	14.55~16.10 /≤0.3		14.20~16.45/≤0.35
	2/98	16.10~18.05/≤0.25		15.70~18.45/≤0.35	16.2~17.95/≤0.25		15.80~18.35/≤0.3
	1/99	19.05~21.15/≤0.2		18.55~21.65/≤0.3	19.1~21.1 /≤0.2		18.65~21.55/≤0.3
PDL (dB)		≤0.10		≤0.15	≤0.10		≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
