Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler

Ask Lasest Price
Brand Name :	UNIFIBER
Model Number :	1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000pcs/day
Delivery Time :	5~7 Business days

Add to Cart

Product Details
Company Profile

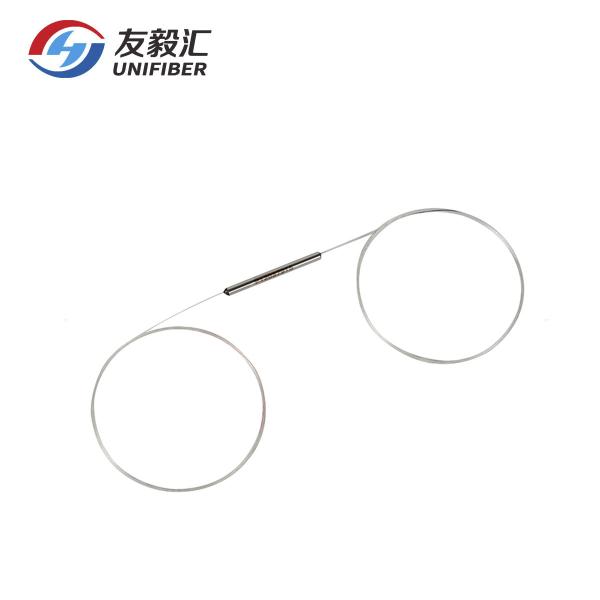

Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler

1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)

1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC) features low excess loss, high stability and reliability. It is widely used for optical fiber communication systems and CATV systems.

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade		P	A
Parameter		P	A
Operating wavelength (nm)		1310 or 1550, others on request
Operating bandwidth (nm)		± 15
Typical excess loss (dB)		0.07	0.1
Insertion loss (dB)	50/50	≤3.4	≤3.6
	45/55	≤4.1/3.1	≤4.3/3.3
	40/60	≤4.4/2.6	≤4.7/2.8
	35/65	≤5.2/2.3	≤5.5/2.5
	33/67	≤5.4/2.2	≤5.7/2.3
	30/70	≤5.7/1.9	≤6.0/2.0
	25/75	≤6.6/1.7	≤7.0/1.8
	20/80	≤7.6/1.25	≤8.0/1.35
	15/85	≤9.2/1.0	≤9.6/1.2
	10/90	9.2~11.0/≤0.65	9.0~11.2/≤0.8
	5/95	12.0~14.2 /≤0.4	11.75~14.45/≤0.5
	3/97	14.05~16.55/≤0.3	13.75~16.85/≤0.4
	2/98	15.7~18.5/≤0.25	15.35~18.85/≤0.35
	1/99	18.55~21.5/≤0.2	18.15~22.0/≤0.3
PDL (dB)		≤0.10	≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
