    2x12F MPO To LC Duplex LC OM3 MPO MTP Cassette Module

    Ask Lasest Price
    Brand Name : UNIFIBER or OEM
    Model Number : MPO/MTP Cassette Module
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 5-7days
    • Product Details
    • Company Profile

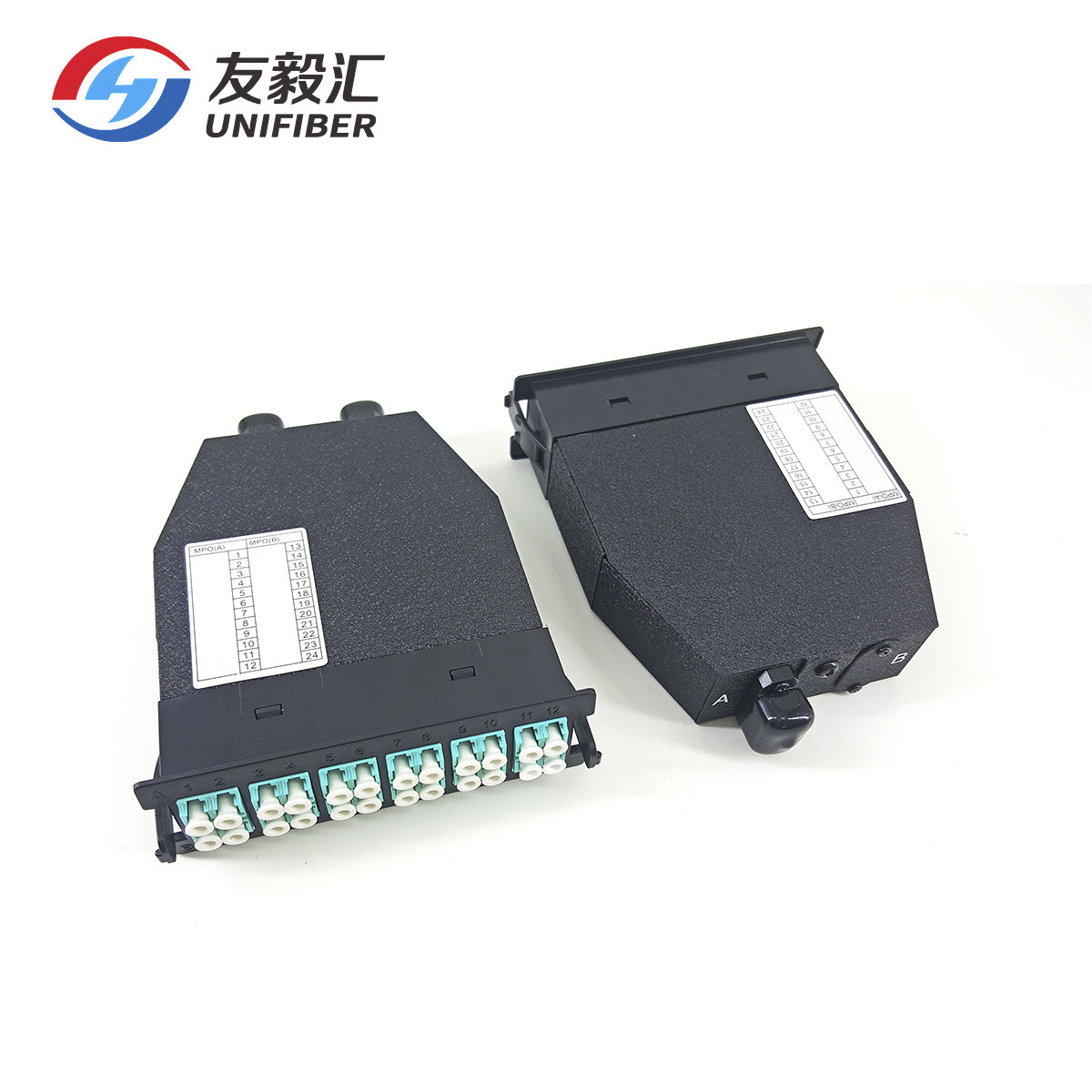

    2x12F MPO To LC Duplex LC OM3 MPO MTP Cassette Module

    24 Fiber Duplex LC OM3 MPO/MTP Cassette Module Fully Loaded With 2x12F MPO to LC Fanout Patch Cord

    MPO Fiber Optic Cassette is fitted with 12 or 24 Fibers and have LC, SC adapters on the front side and MTP/MPO at the rear.​The MPO/MTP module Cassettes are mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.


    FEATURE

    12 or 24 fiber options available
    Polarity A , B, or C available
    OS1/OS2, OM1, OM2, OM3, OM4 options
    LC or SC front panel interface (other connector options also available)
    Cassette modularity provides quick and easy installation and makes future moves, adds, and changes simple
    Available with flat or angled rear panel configuration
    Compatible with Fiber Management Systems and other similar footprints
    Factory terminated and tested module ensures high quality performance and reliability
    Can be customized for particular applications


    Application

    Cloud storage networks
    Enterprise data centers
    Telecommunication
    High performance zirconia sleeve


    Size
    1U(44.5mm)
    2U(89.0mm)
    3U(132.0mm)
    4U(176.0mm)
    Ports
    3
    6
    9
    12
    Width
    482mm
    Depth
    250mm
    Net Weight
    2.75KG
    3.8KG
    4.35KG
    6.6KG
    Gross Wright
    3.05KG
    4.1KG
    4.7KG
    7.1KG
    Material
    Cold Rolled steel or Aluminium
    Color
    Black, Grey, White
    Complian to
    RoHS, REACH SVHC

    2x12F MPO To LC Duplex LC OM3 MPO MTP Cassette Module2x12F MPO To LC Duplex LC OM3 MPO MTP Cassette Module
