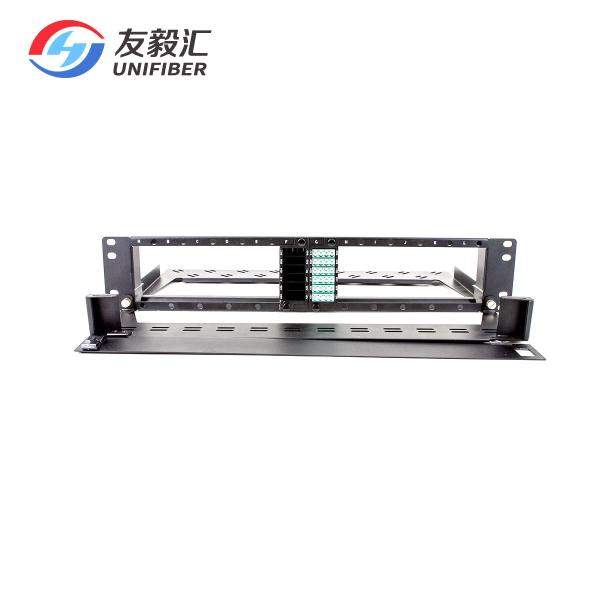

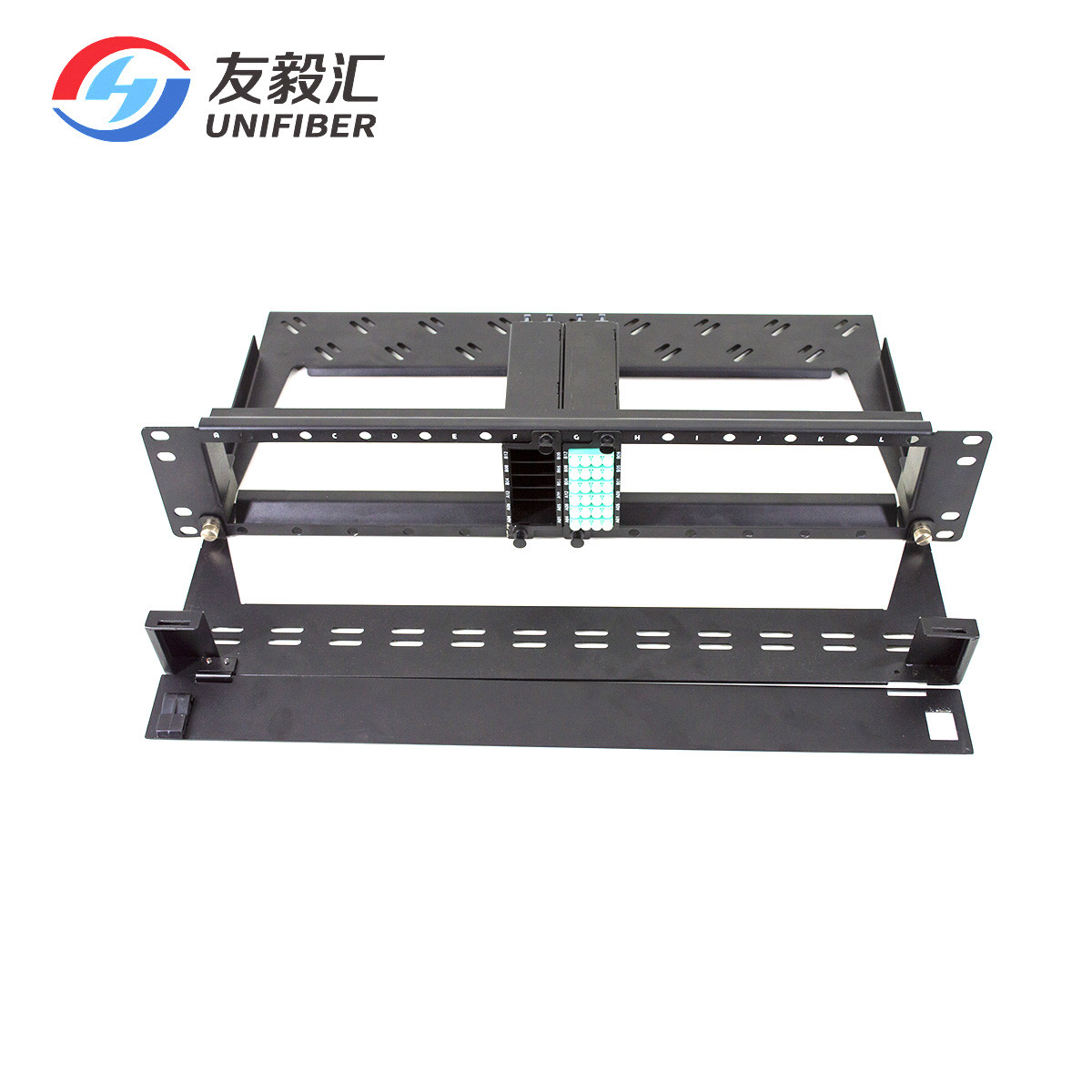

2U 288F Rack Mount MPO/MTP Fiber Patch Panel with multimode OM3 Quad LC 24F Cassette Module

The fiber system has a higher and higher demand on fiber optic connectors with the changes from single mode fiber to multi-mode fiber, from 10G to 40G, 100G. Ethernet transmission of 40G and 100G also becomes the developing trend in data center cabling system. Traditional connectors are more and more difficult to achieve Multi-Fiber and high performance.According to the International standard, high density MTP/MPO connector has been a standard port in the Ethernet transmission of 40G and 100G.

Features:

1U patch panel capacity come up to 120F fully loaded with 5 modules. and 2U capacity come up to 288F fully loaded with 12 modules

Modular in design with higher density, special mini module comes up to 24 LC or 12 SC adapter ports and switch to MTP/MPO connection.

19"rack mount, the panel and modules are made of cold rolled steel sheet.
Unique tool-free installation design for easy and fast assembly and installation.
Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost.
Front cable management function is convinent for managing cable and identifying link label.

Application

High density cable wiring system

Connection of trunk line

High integrated equiement and devices
Local area networks
Wide area networks
Switching between trunk line and distribution line

Specification
