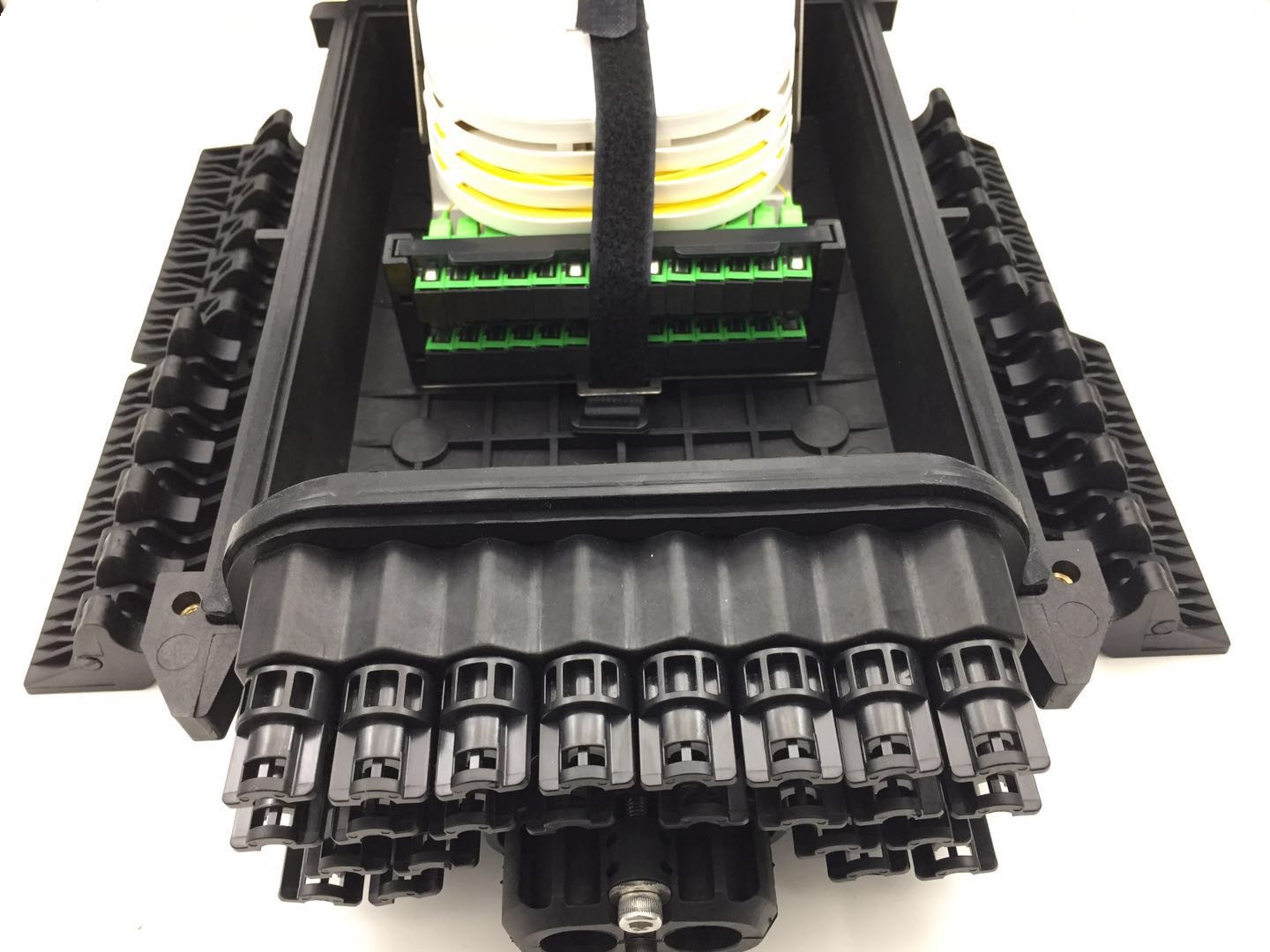

FTTH outdoor IP68 24 core fiber optic terminal box is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Application
FTTH pre-installation and field installation
Wall mounting and pole mounting installation
4-7mm cable ports suitable for 2*3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-support

Features
Water-proof design with IP-68 protection standard.
Suitable for the fusion splice or mechanical splice
2pcs of 1*8 splitter can be installed as an option
24 adaptors for drop cable patching,Integrated with flap-up splice cassette and adaptor holder.
Impact test: IK10, Pull Force: 100N Full rugged design
Mechanical sealing structure and mid-span cable entry.
16ports cable entrance for drop cable.
All stainless metal plate and anti-rusting bolts nuts,
Fiber bend radius control more than 40mm.

Specification:

Parts list
