FTTH 4 port fiber optic terminal box SC

FTB-104C Fiber Optical Terminal Box is used in the end termination of residential building and villa, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall. For connecting up to 8 LC or 4 SC/FC connectors. In order to prevent access by unauthorized people, the box door is equipped with a lock and key. In addition, the box can be sealed.

Features

White color, graceful style and good adaptability to environment.
Anti-UV, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact. All the materials complied with ROHS standard.
Remarkable laser warning identification.

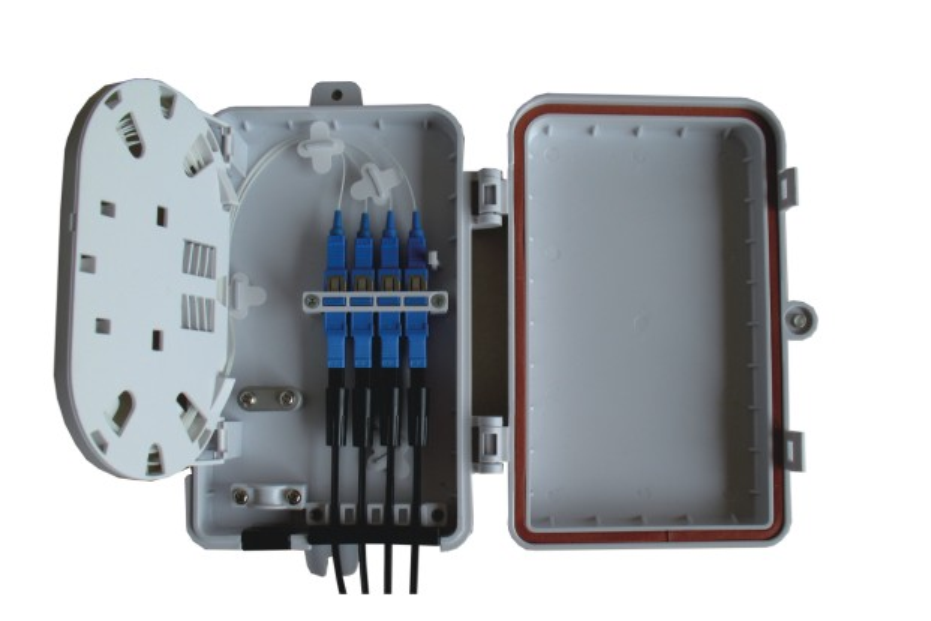

Internal termination box can house up to 4 SC simplex or 1 LC duplex adaptors
The base and cover of the box adopts self-clip & screw-clip two times lock method, which is better to use in outdoor for high sealing and waterproof.
Special design ensures the excess fiber cords and cables in good order, effectively prevent the miss-operation.
Easy operation, saving installation working hours, lower costs.

Application
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

Specification:
