    FTTA Cpri Optitap Duplex LC 7.0mm Fiber Patch Cord G657A

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : H-Connector Optitap Compatible
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

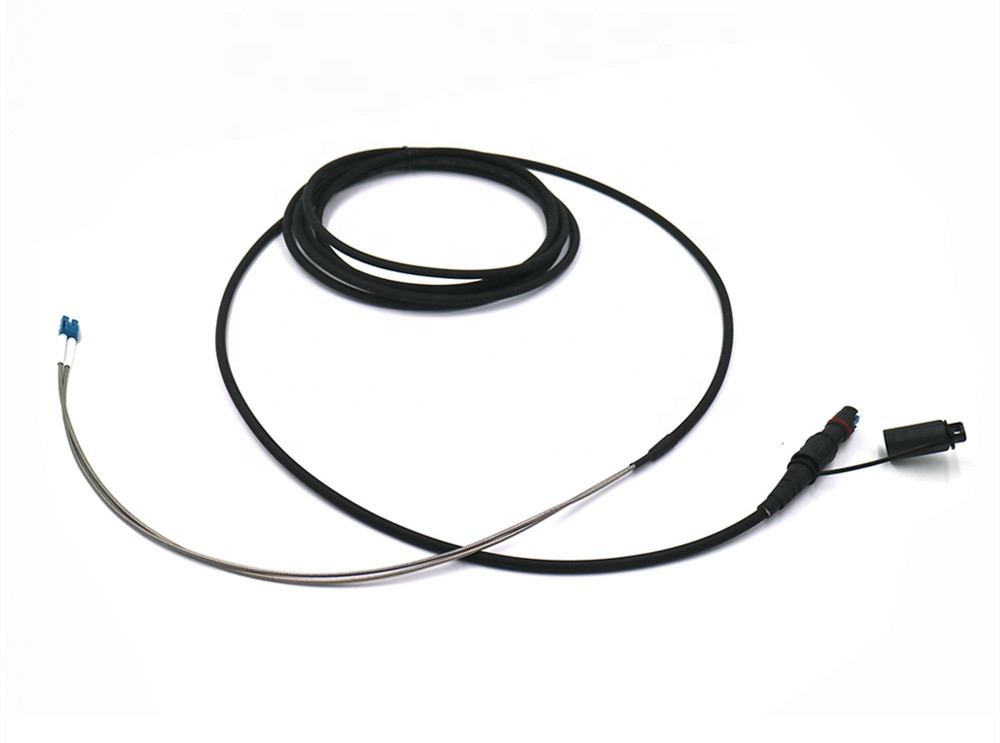

    FTTA Cpri Optitap Duplex LC 7.0mm Fiber Patch Cord G657A

    FTTA Cpri Optitap H-Connector Duplex LC Drop Fiber Patch Cord RRU RRH

    Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
    The end incorporates an Duplex LC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The Duplex LC connectors mate to a standard adapter providing a common interface for FTTX applications.


    Features:
    1. The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    2. Standard Duplex LC connector, well connected with standard LC adaptor
    3. Available Single mode and Multimode
    4. IP67 protection, salt-mist proof, humidity proof, dust proof
    5. Low insertion/return loss, steady optical transmitting.
    6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
    7. 500cycles Mechanical life
    8. Easily add/install jumper cables for a future expansion
    9. Factory-assembled cables for a fast on-site installation
    10. Flexibility with small bending radius and excellent cable routing properties
    11. Equipped with customer specific power and fiber-optic connectors


    Applications:
    1.Multi-purpose Outdoor.
    2.For connection between distribution box and RRH.
    3.Deployment in Remote Radio Head cell tower


    Specification:


    ItemData
    fiberSingle mode G.657A2
    Fiber diameter7.0mm
    Material & color for jacketLSZH black
    Tension memberAramid fiber
    Max. attenuation

    ≤ 0.4dB/km at 1310nm

    ≤0.3dB/km at 1550nm

    Tensile resistance(short term)500N(no breakage)
    Crush resistance(short term/long term)1000N/100mm
    inflaming retardingIEC 60332-3
    Temperature-40~+70°C
    UvioresistantPASS
    AuthenticationMeet with RoHS &UL

    Type
    SM-UPC
    SM-APC
    MM-UPC
    Typical
    MAX
    Typical
    MAX
    Typical
    MAX
    Insertion loss
    ≤0.1
    ≤0.3dB
    ≤0.15
    ≤0.3dB
    ≤0.05
    ≤0.3dB
    Return loss
    ≥50dB
    ≥30dB
    ≥30dB
    Durability
    500 mating cycles
    Working temperature
    -40 to + 85℃
