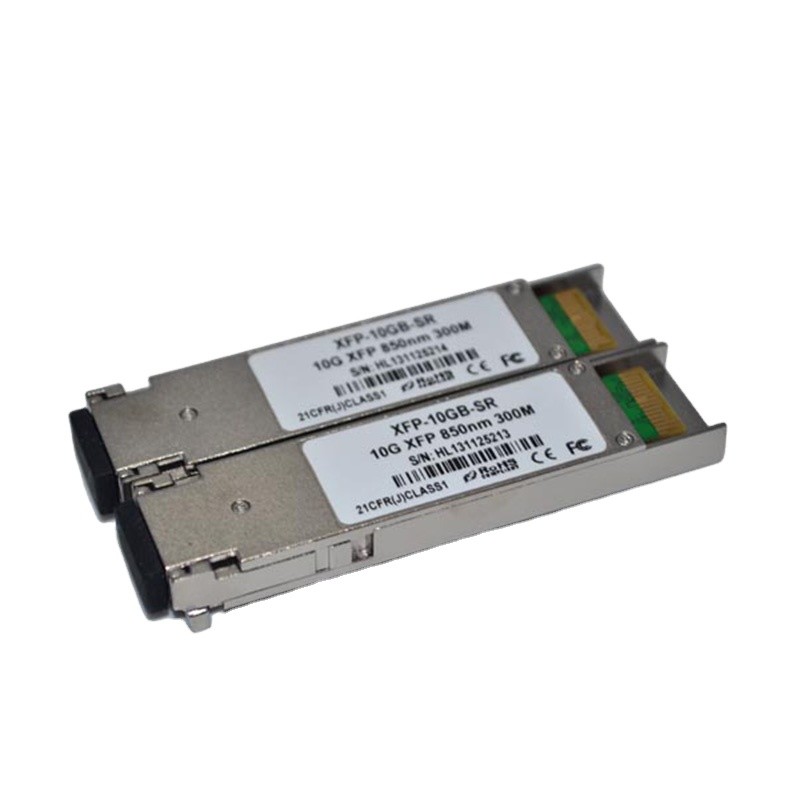

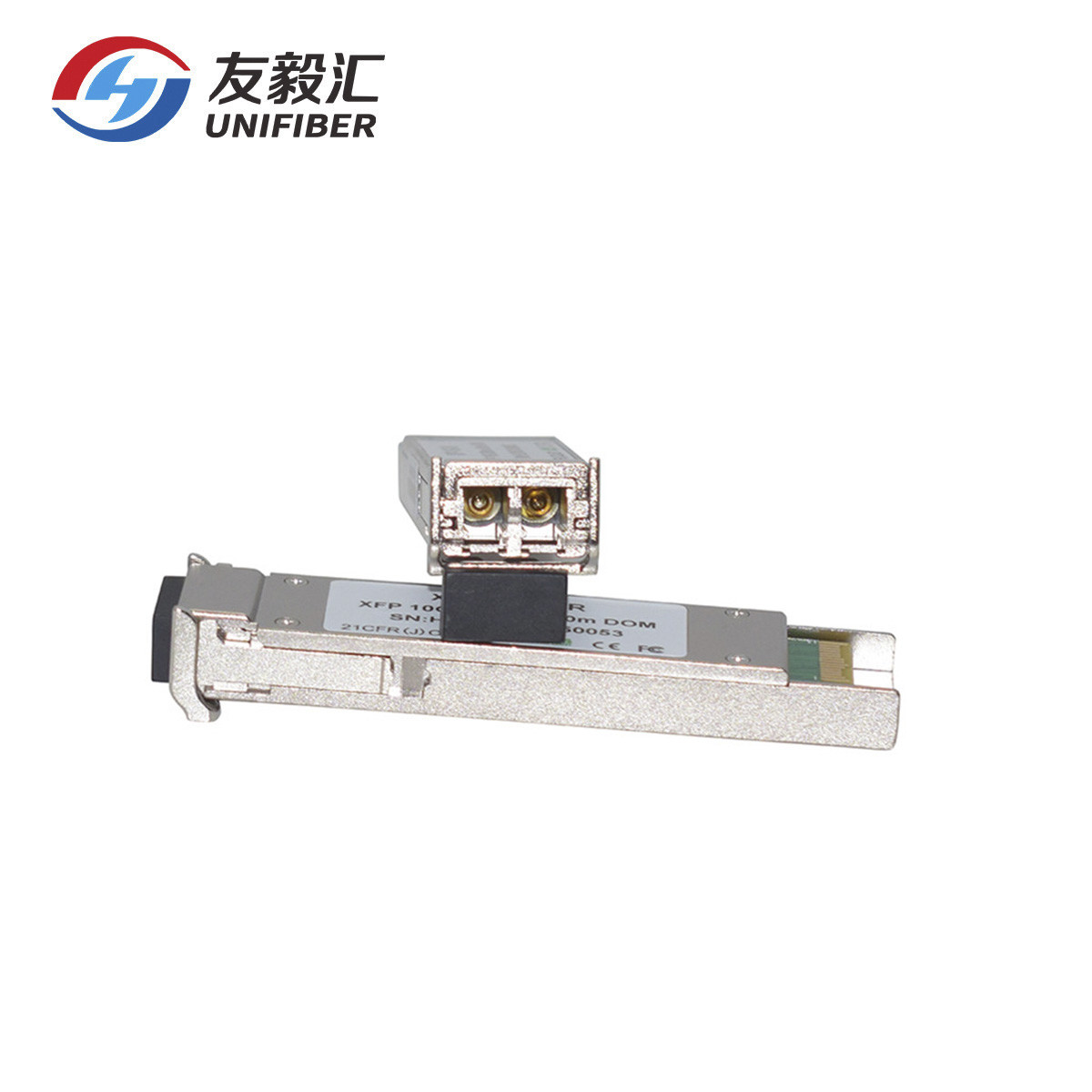

XFP 10G SR 850nm 300m Optical Transceiver Module DOM

XFP SR is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-SR) or 9.953Gbps (10GBASE-SW), and transmission distance up to 300m on 50μm MMF (2000MHz.km).The transceiver module comprises a transmitter with 850nm a vertical cavity surface emitting (VCSEL) laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10G systems.

FEATURES :

Supports 9.95Gbps to 11.1Gbps bit rates
Maximum link length of 300m (50um,MMF,2000MHz.Km)
850nm VCSEL laser and PIN receiver
XFP MSA Rev 4.5 Compliant
No reference clock required
+1.8V,+3.3V Supply Voltage
Low Power Dissipation 1.5W Maximum
XFI and lineside loopback Mode Supported
0ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, andreceive optical power
RoHS6 compliant (lead free)

APPLICATIONS :

10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fiber Channel
Other optical links

Brand Compatible

Ordering Information:
