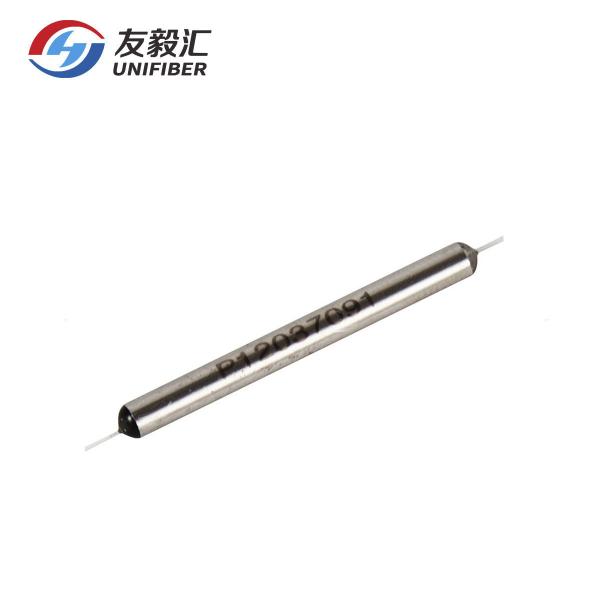

    1x2 Splitter 980/1550nm EDFA WDM Wavelength Optical Couplers

    Ask Lasest Price
    Brand Name : UNIFIBER
    Model Number : FUSED WDM
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 5~7 Business days
    • Product Details
    • Company Profile

    1x2 Splitter 980/1550nm EDFA WDM Wavelength Optical Couplers

    Singlemode wavelength division multiplexer WDM 1310/1550,980/1550nm,1480/1550nm 1X2 2X2 combine or separate light at different wavelengths. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. These components have been extensively used in CATV, WDM networks, Fiber sensor and fiber optics instrumentation.


    Features:

    Low insertion loss
    Low PDL
    High channel isolation
    Excellent environmental reliability


    Application

    Long-HauIUni and Bi-Directional
    Telecommunications System
    Digital, Hybrid and Am-video Systems
    High-Speed Multi-Wavelength Systems
    CATV Links & Fiber Sensors


    Parameters

    Parameter
    WDM-1310/1550
    WDM-980/1550
    WDM-1480/1550
    Operating Wavelength(nm)
    1310 & 1550
    980 & 1550
    1480 & 1550
    Bandwidth(nm)
    ±15
    ±15
    ±5
    Grade
    P
    A
    P
    A
    P
    A
    Max Insertion loss(dB)
    ≤0.25
    ≤0.3
    ≤0.25
    ≤0.30
    0.3
    0.35
    Peak Isolation(dB)
    ≥24
    ≥22
    ≥23
    ≥22
    ≥22
    ≥20
    Min Isolation(dB)
    ≥17
    ≥16
    ≥20
    ≥18
    ≥15
    ≥15
    PDL (dB)
    ≤0.05
    ≤0.10
    ≤0.05
    ≤0.10
    ≤0.1
    ≤0.15
    ≤0.1
    Temperature stability(dB)
    ≤0.002
    Return loss(dB)
    ≥55
    Directivity(dB)
    ≥55
    Operation temperature
    -40 to +85
    Store temperature
    -40 to +85

    1x2 Splitter 980/1550nm EDFA WDM Wavelength Optical Couplers
