    Wateproof IP67 ODVA SC LC MPO Fiber Optical Adapter

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : ODVA
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/DAY
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Wateproof IP67 ODVA SC LC MPO Fiber Optical Adapter

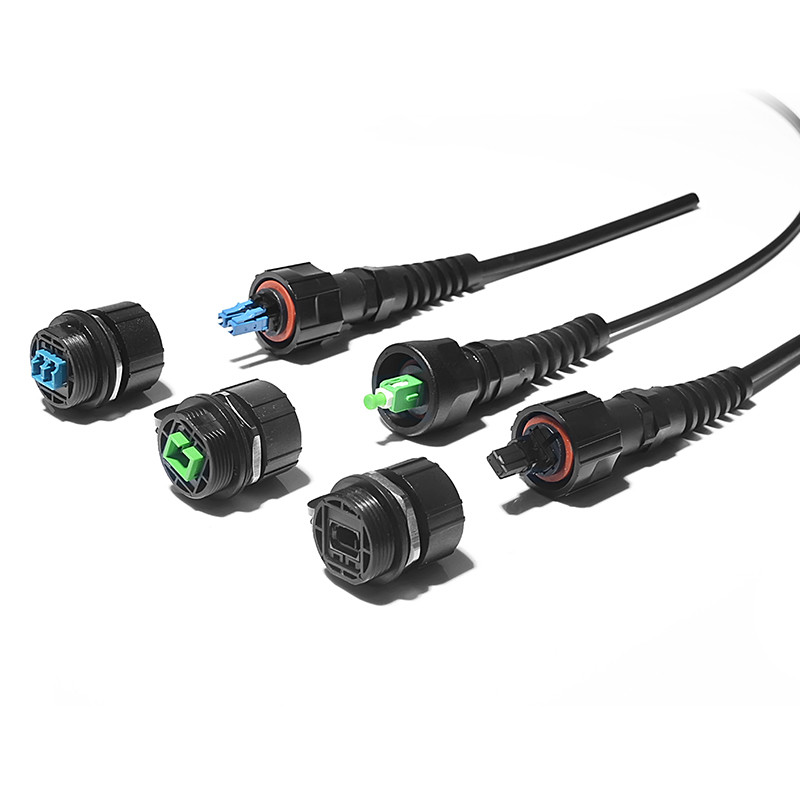

    Outdoor wateproof IP67 ODVA SC LC MPO socket / adapter

    ODVA socket / adapter is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.These ODVA adapters, together with IP67 rated compact RRH/RRU Helix cover connectors that have fast coupling. And these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.


    Features:

    Low insertion loss.
    IP67 water, light weight, dustproof and corrosion resistant
    The material of the jumper cables are all-weather and UV-resistant.
    Cost effective solution for in house termination.
    Wide range of operational temperature for outside plant -40 to +85°C
    Wide range of cables to be used, 5-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
    Chemical Resistance
    Simple assembly requiring no special tools
    Durable mechanical mating, minimum of 500 matings

    Application

    Widely used in FTTA & FTTH
    Used for 4G/5G wireless base station
    BBU, RRU, RRH, LTE


    Item
    Parameter
    Single-mode
    Multi-mode
    Insertion Loss
    ≤0.3dB
    Return Loss
    ≥50 dB (PC), ≥60 dB (APC)
    Repeatability
    ≤0.1dB
    Durability
    0.2dB Max. 1000 mattings
    Operating Temperature
    -40℃~+85℃
    Storage Temperature
    -40℃~+85℃
