    Rugged ODC-LC Plug Socket TPU Fiber Optical Patch Cord

    Ask Lasest Price
    Brand Name : UNIFIBER
    Model Number : ODC-2/4
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Rugged ODC-LC Plug Socket TPU Fiber Optical Patch Cord

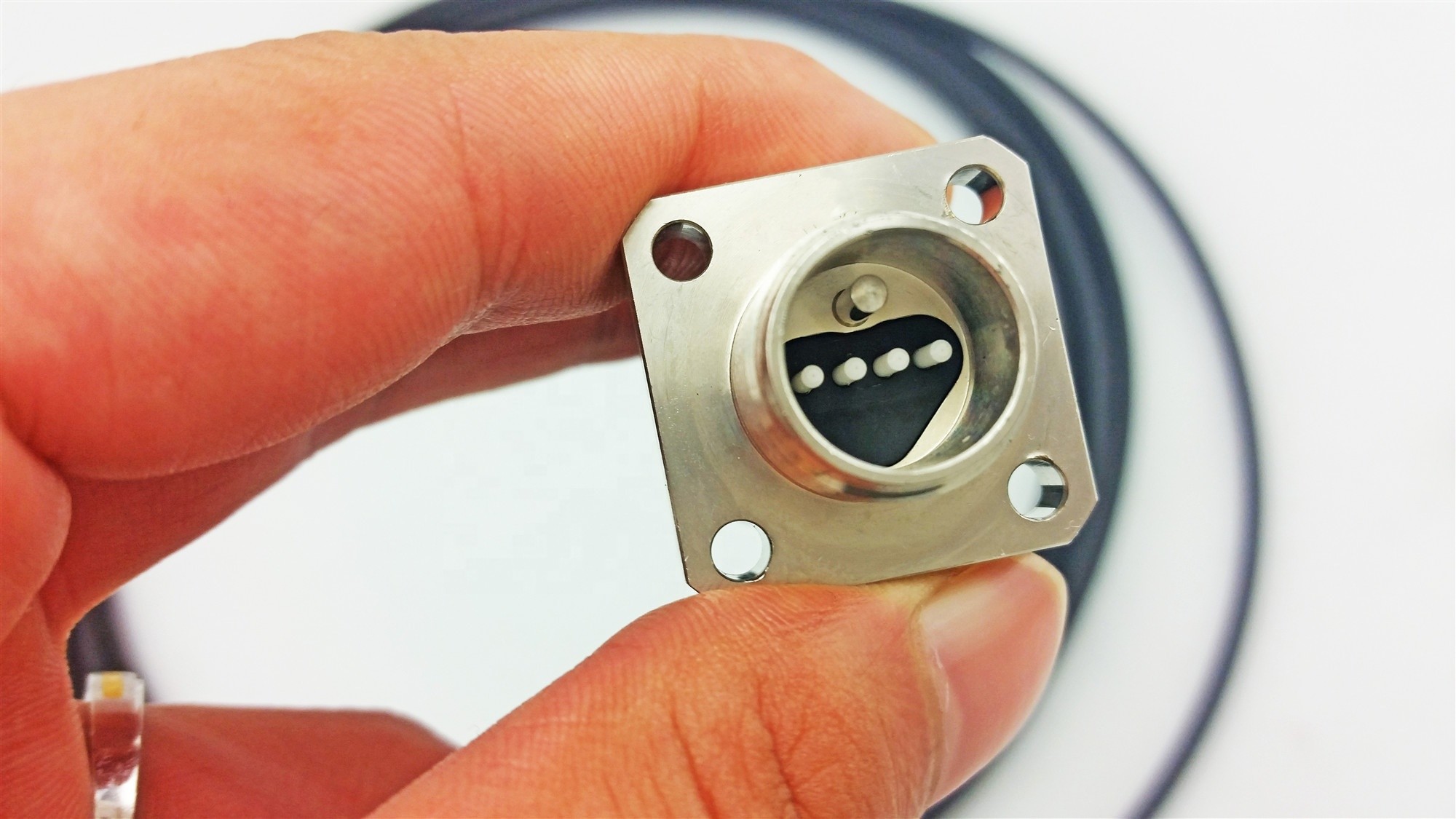

    Waterproof Rugged ODC-LC plug/socket 2/4 core fiber optic patch cord

    ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.


    Features

    2 fibers singlemode or multimode

    Built-in plug with square or hexagonal flange

    Connector - ODC Plug to LC

    Easy and safe intallation Screwed locking mechanism
    Water proof, dust proof and corrosion resistant
    Extension connector for cable chaining
    Water proof protection caps
    EMI protected, ROHS compliant
    Compact design with 2x1.25mm ferrules


    Application

    Multi-purpose Outdoor

    For connection between distribution box and RRH

    Deployment in Remote Radio Head cell tower applications

    Intelligent substation
    Railway signal control

    Outdoor & Military communication equipment connection.


    Parameters

    Fiber Core2,4
    ModeSinglemodeMultimode
    Operating Wavelength(nm)1310/1550850/1310
    PolishmentUPCAPCUPC
    Insertion Loss(Max.dB)0.70.6
    Return Loss(Min.dB)556035
    Mating times500 Min
    Durability(Max.dB)0.2
    Reaptability(Max.dB)0.5
    Operating Temperature(℃)-40~+85
    Storage Temperature(℃)-40~+85

    Rugged ODC-LC Plug Socket TPU Fiber Optical Patch CordRugged ODC-LC Plug Socket TPU Fiber Optical Patch Cord
