    Plug Socket FTTA ODC-2 ODC-4 Fiber Optic Patch Leads

    Ask Lasest Price
    Brand Name : UNIFIBER
    Model Number : ODC-2/4
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

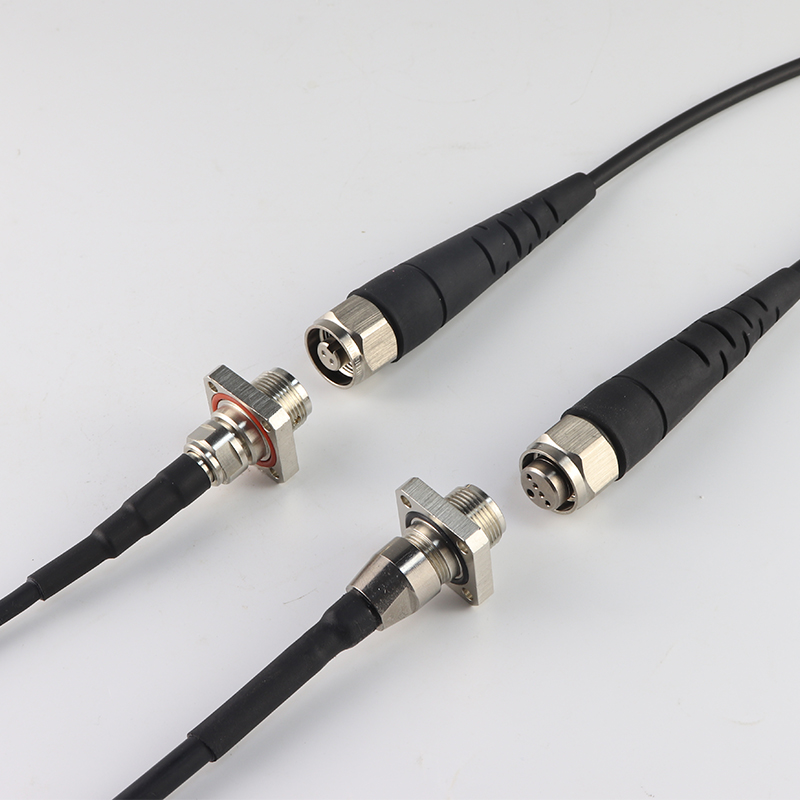

    Plug Socket FTTA ODC-2 ODC-4 Fiber Optic Patch Leads

    ODC-2 ODC-4 fiber connector plug / socket cable assemblies

    ODC fiber optic patch cables with extremely robust outdoor connector are designed to withstand harsh environment such as mechanical loads, high thermal exposure, and demanding environments like rain, salt and splash water. It is known for their ease of installation and highest operation safety due to the robust and ruggedized design. ODC military grade cables are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.


    Application

    Intelligent substation
    Railway signal control

    Multi-purpose Outdoor

    For connection between distribution box and RRH

    Deployment in Remote Radio Head cell tower applications

    Outdoor & Military communication equipment connection.


    Features

    Connector - ODC Plug to LC

    Water proof protection caps

    Water proof, dust proof and corrosion resistant

    2 fibers singlemode or multimode

    Built-in plug with square or hexagonal flange

    Easy and safe intallation Screwed locking mechanism
    Compact design with 2x1.25mm ferrules


    Parameters

    Fiber Core2,4
    ModeSinglemodeMultimode
    Operating Wavelength(nm)1310/1550850/1310
    PolishmentUPCAPCUPC
    Insertion Loss(Max.dB)0.70.6
    Return Loss(Min.dB)556035
    Mating times500 Min
    Durability(Max.dB)0.2
    Reaptability(Max.dB)0.5
    Operating Temperature(℃)-40~+85
    Storage Temperature(℃)-40~+85
