    SPCC Rack Mount Floor Standing 42U Network Server Cabinet

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : 42U
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    SPCC Rack Mount Floor Standing 42U Network Server Cabinet

    Indoor floor standing 42U rack telecom network server cabinet

    Feature
    Exquisite design with precise craftsmanship;
    Reticular high-density vented door with over 180 turning degree; steel rear door;
    Steel rear door with little round lock, optional other lock;
    Removable side panel with latch, easy to install, optional lock;
    Adjustable feet and castors are available simultaneously;
    Cable entry on the top, adjustable cable entrance at the bottom with panel;
    Spring locks for front door, optional other lock;
    Various optional accessories for common using;
    Unassembled packing, about 2/5 of original volume, save container space;
    Material:SPCC quality cold rolled steel
    Thickness: Mounting profile: 2.0mm; Mounting angle,Fornt door,: 1.2mm; other: 1.0mm
    Surface finish:Degreasing, Pickling, Phosphating, Powder Coated
    Loading Capacity:Static loading: 800kg (with adjustable feet)


    Capacity
    (U)
    Width
    (mm)
    depth
    (mm)
    Volume-W
    (CMB)
    Volume-F
    (CMB)
    186006000.38440.2525
    8000.50800.2525
    10000.63240.2800
    226006000.46130.3005
    8000.61010.3020
    10000.75890.3392
    256006000.49970.3301
    8000.66090.3376
    10000.82210.3796
    276006000.53820.3221
    8000.71180.3623
    10000.88540.4048
    326006000.61500.3758
    8000.81340.4227
    10001.01180.4760
    376006000.71140.4319
    8000.94050.4643
    10001.16990.4936
    426006000.78800.4868
    8001.04220.4868
    10001.29640.5595
    8006001.04220.4868
    8001.41200.6970
    10001.75640.7201
    476006000.84570.5417
    8001.15410.5417
    10001.39130.6194
    8006001.15410.5417
    8001.47930.7757
    10001.84010.7970

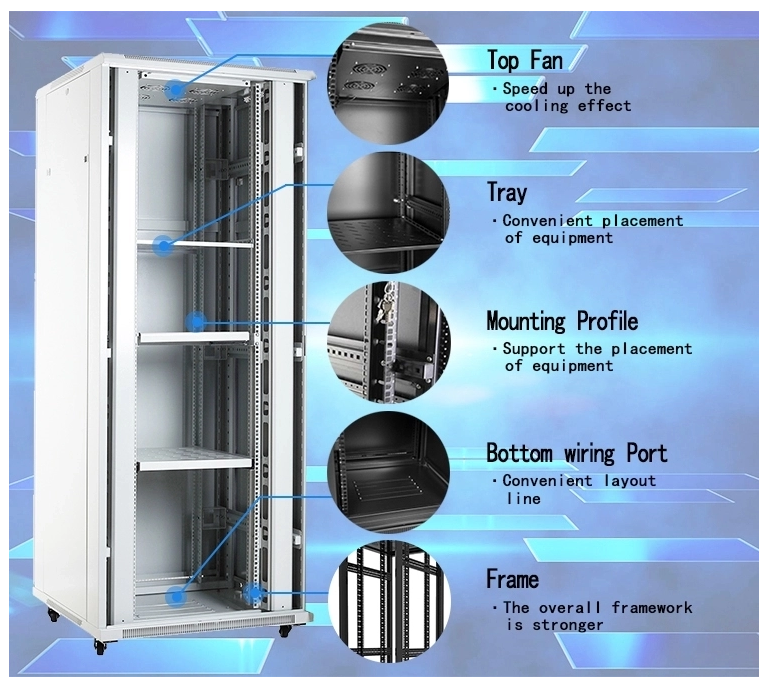

    Main parts
    No.Component NameQuantityUnitMaterialSurface FinishRemark
    1Top Cover1pcSPCC cold rolled steel T1.0Powder Coated---
    2Fan unit1pc---Powder Coatedwith 2 fans
    3Mounting profile4pcSPCC cold rolled steel T2.0Powder Coated---
    4Mounting angle6pcSPCC cold rolled steel T1.2Powder Coated4pcs for lower 30U
    5Frame2pcSPCC cold rolled steel T1.0Powder Coated---
    6Spring lock1pc---Black---
    7Reticular high-density vented door1pcSPCC cold rolled steel T1.2Powder Coated---
    8Side Panel2pcSPCC cold rolled steel T1.0Powder CoatedRemovable steel door
    9Bottom Panel1pcSPCC cold rolled steel T1.0Powder Coated---
    10Small round lock1pc---Nickel Coatd---
    11Steel rear door1pcSPCC cold rolled steel T1.0Powder Coated---
    12M6 Philip-head screw20pcSteelColor Zinc Coated40pcs for over 30U
    13M6 square nut20pcSteelColor Zinc Coated40pcs for over 30U
    14Castor4pc---------
    15M12 adjustable feet4pc---------
