4 6 8 12 Ports IP68 FTTA Fiber Optic Termination Box

Ask Lasest Price
Brand Name :	UNIFIBER-OEM
Model Number :	FTTX
Certification :	RoHS
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	1000pcs/day
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

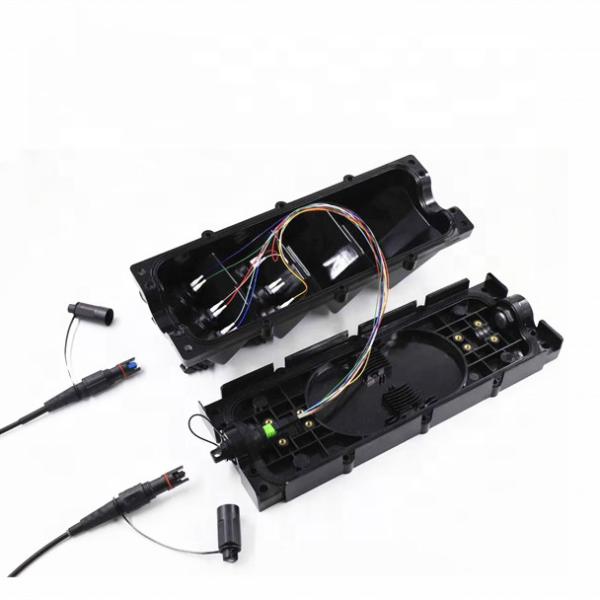

4 6 8 12 Ports IP68 FTTA Fiber Optic Termination Box

4/6/8/12/24 ports IP68 FTTA Enclosure Box with OptiTap compatible waterproof MPO to Duplex LC connectors

FTTX box is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Features
Factory-sealed or field assembly.

Strong enough: working under 1200N pulling force long term.

IP68 waterproof rating.

From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .

High compatibility: can be assembled ODVA, Hconn, Mini SC, PTLC, PTMPO or power adapter.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.

Specification

Dimensions(LxWxH)	365x137x90mm(Without cover) 375x142x120mm(With cover)
Ingress protection	IP67
Temperature range	-40~80℃
Cable strength member	Armoured or Non-armoured
Cable type	Hybrid or non-hybrid
Round cable OD	5.0mm to 14.0mm
Flat cable dimension	4.6x8.9mm
Cable jacket material	LSZH,PE or TPU
Bending Radius	20D
Cable crush resistance	200N/cm long term
Tensile strength	1200N long term
UV resistance	ISO 4892-3
Fire protection rating	UL94-V0
Number of PLC	1to 2pcs
Number of fusion protection steeve	1to 24pcs

4 6 8 12 Ports IP68 FTTA Fiber Optic Termination Box
