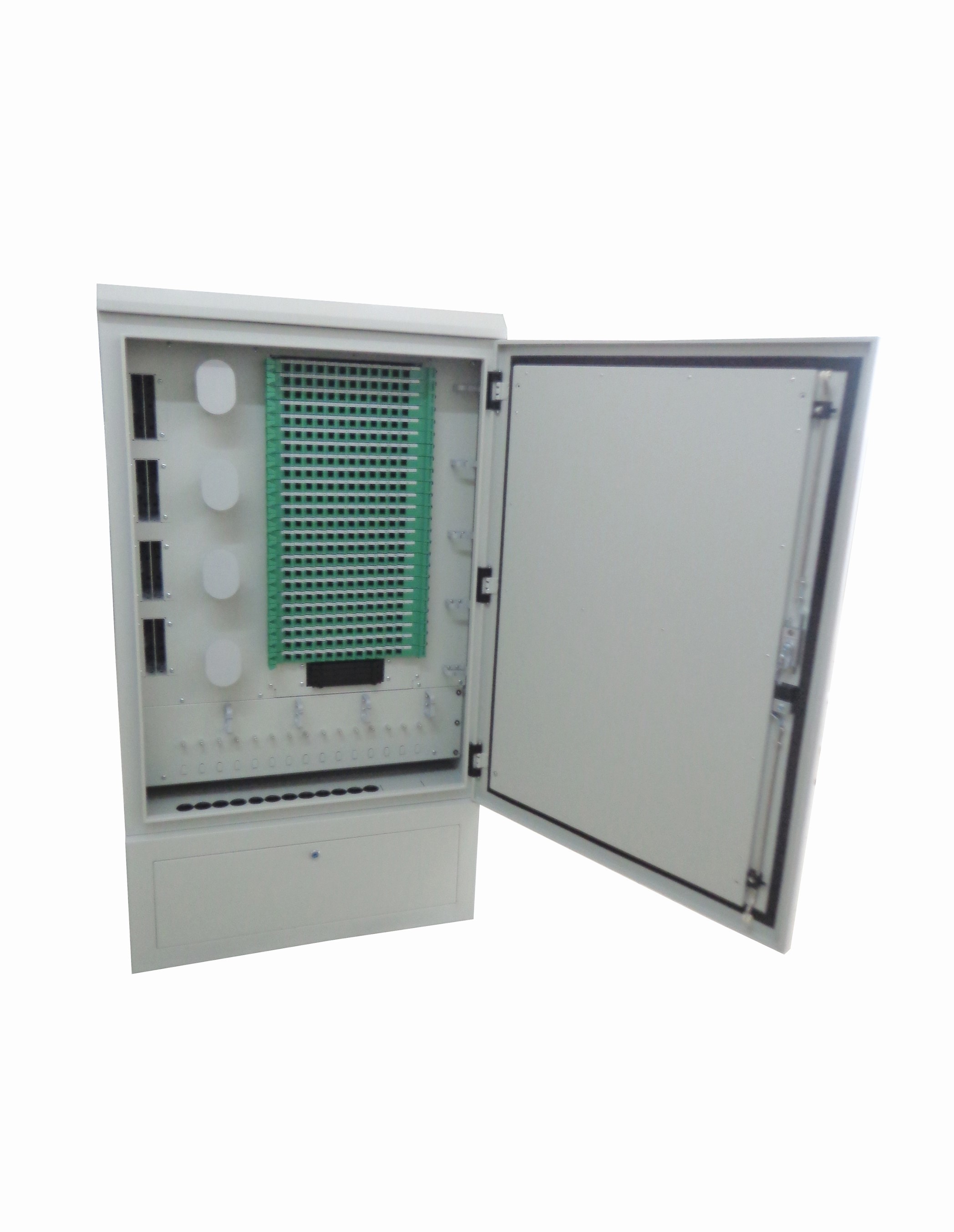

Fiber optic cross-connection cabinet outdoor IP65 288 fibers, high intensity and anti-erosion

Fiber optic cross connection cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access network.

Features:
High intensity and anti-erosion performance
Able to counter abrupt climate change and extreme environment
Capacity can be flexibly customized as required
Installation is quick and convenient
Built-in direct splice unit is capable for providing direct connection function.
Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
With secure and reliable fastening and grounding protection devices for the optic fiber
Applicable to strap-shaped and non-strap shaped fibers

Specification:

Material: SMC
Protection level: IP65

Nominal work wave-length: 850nm, 1310nm, 1550nm
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Work Temperature: -45℃-+85℃
Relative humidity:≤85%(+30°C)
Atmospheric pressure: 70~106 KPa
Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)
Durability:≥1000 times
Anti-voltage strength: ≥3000V(DC)/1min

Dimensions:
