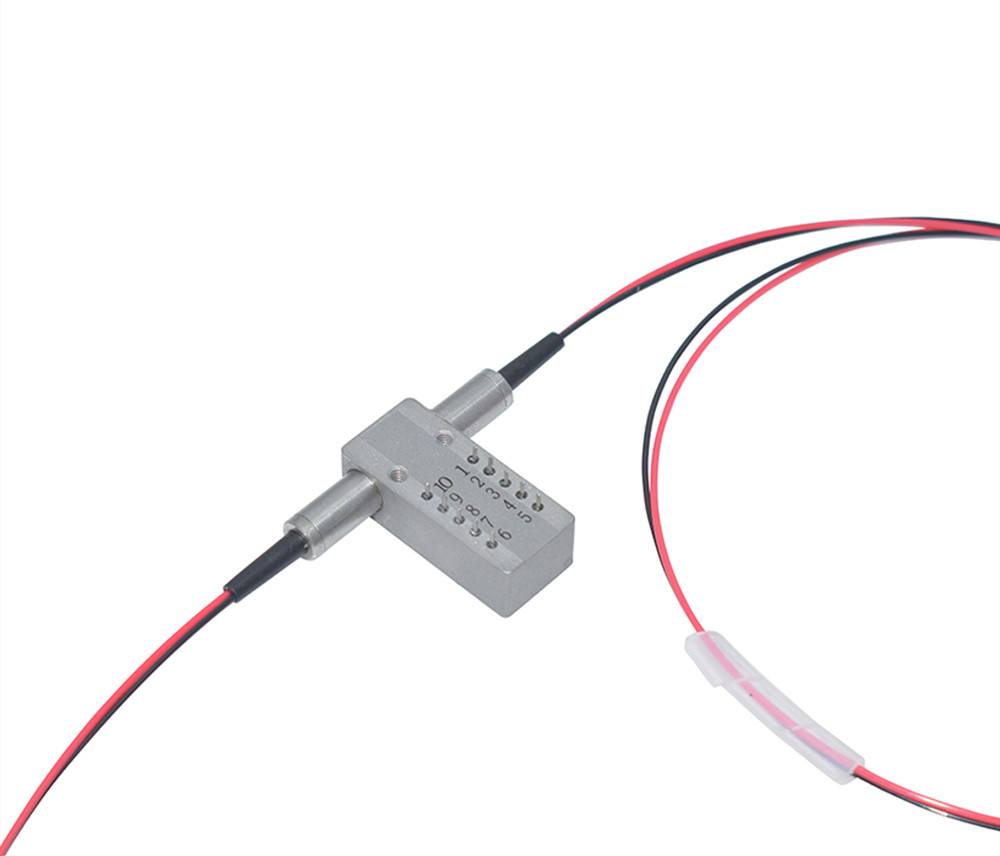

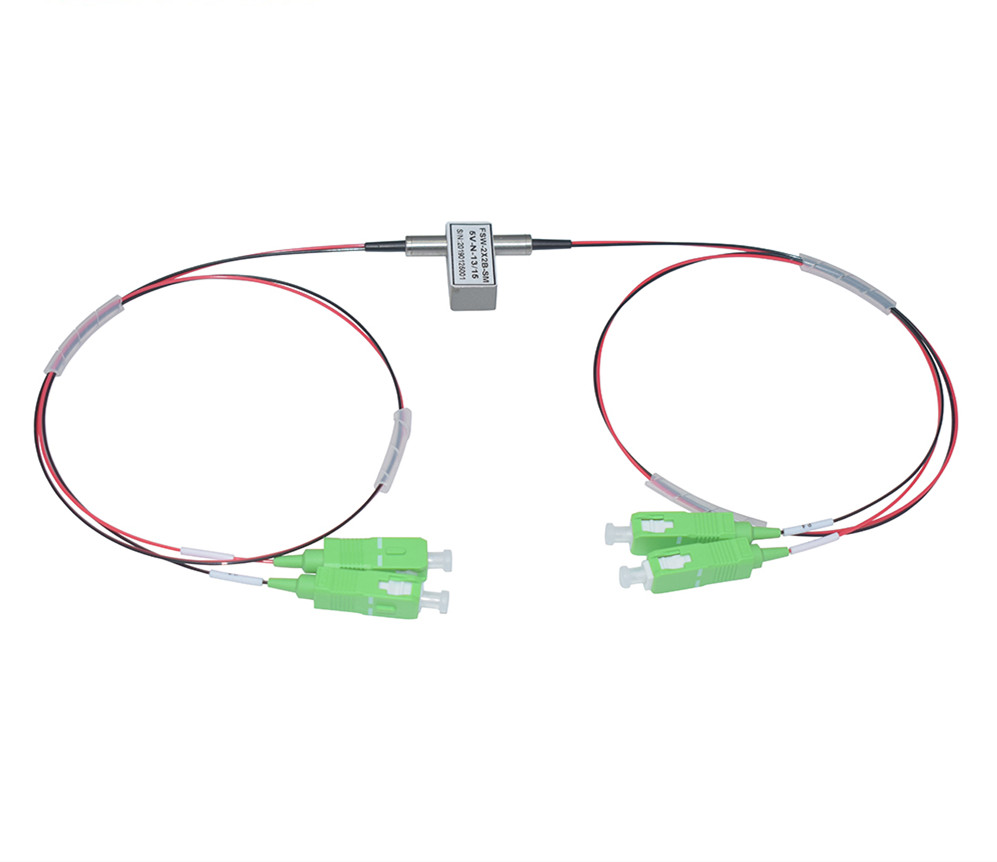

    2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : 2x2
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection

    2x2 Bypass Mechanical Fiber Optic Switch 1310/1550nm for Optical network protection

    2x2 Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.


    Features
    Compact size

    Fast switch time
    Low insertion loss, low PDF, low WDL
    High durability


    Applications
    Protection switching
    Network monitoring
    OADM, OXC, OPM

    Performance Specifications

    Parameter2×2-MM/SM
    Wavelength Range(nm)850±401260~1650
    Operating Wavelength850±401310/1490/1550/1625/1650
    Insertion Loss(dB)Typ:0.8 Max:1.2Typ:0.6 Max:0.8
    Return Loss(dB)MM≥30SM≥50
    Crosstalk(dB)MM≥65SM≥70
    Polarization Dependent Loss(dB)≤0.05
    WaveLength Dependent Loss(dB)≤0.25
    Temperature Dependent Loss(dB)≤0.25
    Repeatability(dB)≤±0.02
    Power Supply(V)3.0 or 5.0
    Lifetime(time)≥10^7
    Switch Time(ms)≤8
    Transmission Power(mW)≤500
    Operating Temperature(℃)-20~+70
    Storage Temperature(℃)-40~+85
    Weight(g)16
    Dimension(mm)(L)28.0×(W)12.6×(H)8.0

    1,Specifications may change without notice.

    2,Above specification are for device without connector.

    Pins

    TypePinElectric DriveStatus Sensor
    2×2Light PinPin1Pin5Pin6Pin10Pin2-3Pin3-4Pin7-8Pin8-9
    LatchingP1-P4,P2-P3V+GND----OpenCloseCloseOpen
    P1-P3,P2-P4----GNDV+CloseOpenOpenClose
    Non-latchingP1-P4,P2-P3V+----GNDOpenCloseCloseOpen
    P1-P3,P2-P4--------CloseOpenOpenClose

    Optical Route

    Status OneStatus Two

    Electric

    SpecificationsVoltageCurrentResistance
    5V latching4.5~5.536~44mA125Ω
    5V non-latching4.5~5.526~32mA175Ω
    3V latching2.7~3.354~66mA50Ω
    3V non-latching2.7~3.339~47mA70Ω
