    2 In 2 Out Inline IP68 Pole Mounting Cable Joint Closure

    36 Cores 2 In 2 out Inline joint closure fiber optic box IP68 Pole Mounting

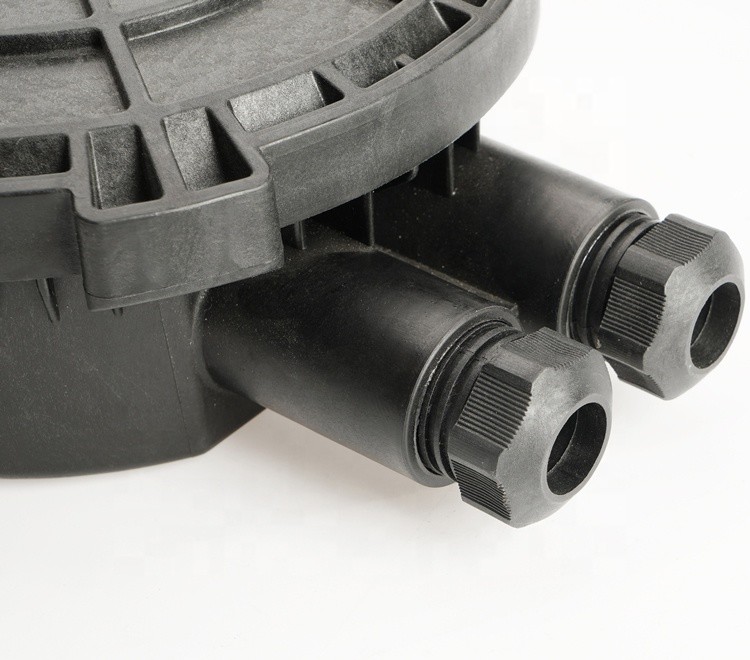

    GPJ09-9401 hinged inline joint closure features the unique spiral-style mechanical seal, and 1 uncut cable port and 2 branch ports. It's small in size. This fiber closure supports multiple-time use for fiber management, with the IP68 protection level realized by mechanical seal. The tray capacity of the closure is 12 fibers. A total of 3 trays can be accommodated in this closure, with a maximum capacity is 36 fibers. This enclosure is suitable for wall mounting, pole mounting, duct mounting and underground applications.


    Features:

    Ports: 2 inlets (uncut, Φ10-17.5 mm), 2 outlets (branch, Φ10-17.5 mm)
    Capacity: 36F
    Seal: Mechanical
    Waterproof: IP68
    Material: PP+GF
    Applications: Aerial, wall mounting, pole mounting, duct mounting, underground


    Model No.
    GPJ09-9401
    Style
    Hinged
    Dimensions (L×W×H)
    295×220×90 mm
    Material
    PP+GF
    Sealing Type
    Mechanical Seal
    Protection Grade
    IP68
    Cable Ports
    Inlet
    Uncut
    2
    Φ10 - Φ17.5 mm
    Outlet
    Branch
    2
    Fiber Splice Capacity
    36
    Tray Capacity
    12
    Tray Count
    3
    Weight (kg)
    1.8 - 2.0
    Application
    Wall Mounting/ Pole Mounting/ Duct Mounting/ Underground
    Packing Type
    Inner Carton
    320×235×110 mm (1 PCS)
    Outer Carton
    495×345×620 mm (10 PCS)
