    Horizontal FOSC GJS-H003 24 Core fiber optic splicing box

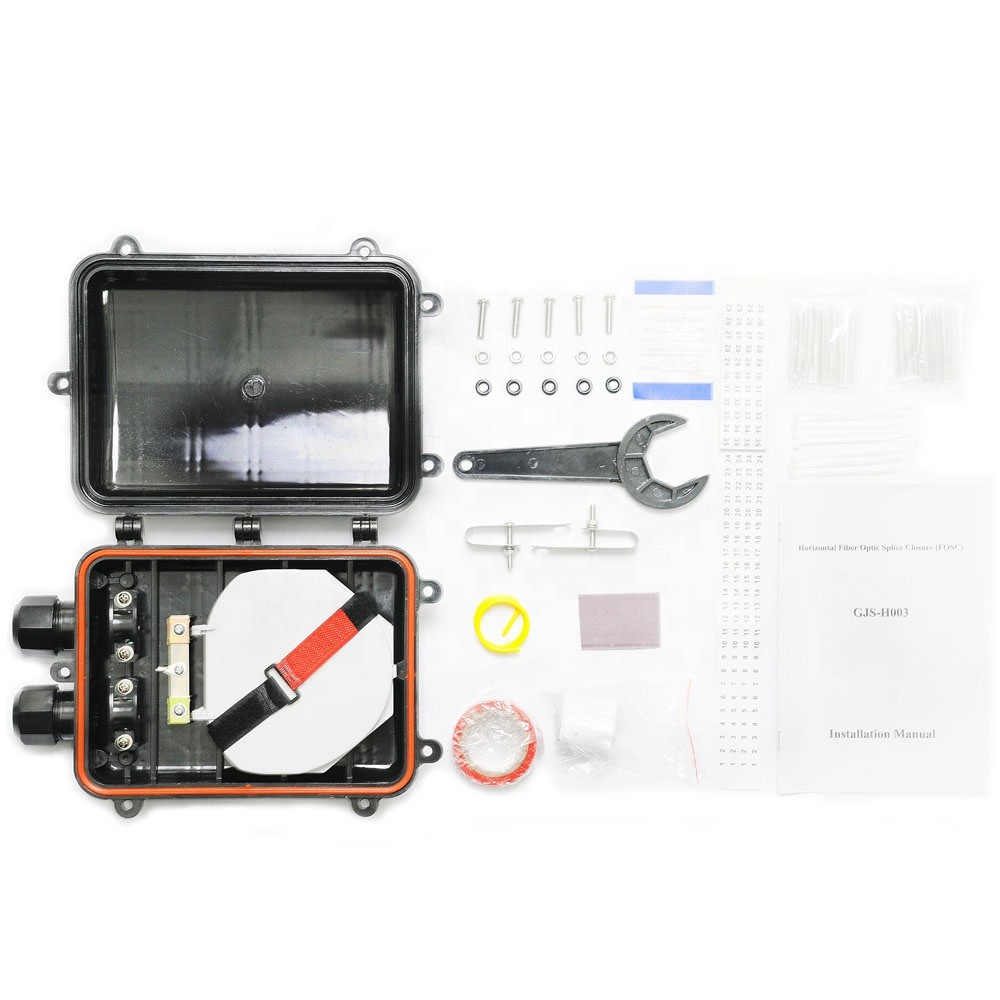

    GJS-H003 Horizontal Fiber Optic Splice Closure (FOSC) 24core with 4 inlet/outlet ports

    1. Scope of application

    This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.The scope of application is: aerial and wall-mounting. The ambient temperature ranges from -40 to 65.


    2. Basic structure and configuration

    2.1 Dimension and capacity

    Outside dimension (LxWxH)280x200x90 (mm)
    Weight (excluding outside box)1200g-1500g
    Number of inlet/outlet portsmax. 4 pieces
    Diameter of fiber cableΦ8—Φ14 (mm)
    Capacity of FOSCBunchy: 696 (Cores)

    2.2 Main components

    No.Name of componentsQuantityUsageRemarks
    1FOSC cover1 pieceProtecting fiber cable splices in whole

    Internal diameter:

    205x146 (mm)

    2FOSC bottom1 pieceFixing reinforced core, fiber cable and FOST

    Internal diameter:

    205x146 (mm)

    3

    Fiber optic splice tray

    (FOST)

    max. 4 pieces (bunchy)Fixing heat shrinkable protective sleeve and holding fibers

    Suitable for:

    Bunchy:6,12,24(cores)

    4Integrated seal fitting1 setSealing between FOSC cover and FOSC bottom
    5Port plug2 piecesSealing empty ports
    6Earthing deriving device1 setDeriving metallic components of fiber cable in FOSC for earthing connection.Configuation as per requirement.

    2.3 Main accessories and special tools

    No.Name of accessoriesQuantityUsageRemarks
    1Heat shrinkable protective sleeveProtecting fiber splicesConfiguration as per capacity
    2Nylon tieFixing fiber with protective coatConfiguration as per capacity
    3Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
    4Hanging hook1 setFor aerial useConfiguration as per requirement
    5Fixing device1 setConfiguration as per requirement
    6Earthing wire1 piecePutting through between earthing devicesTo put through while required
    7Abrasive cloth1 pieceScratching fiber cable
    8Labeling paper1 pieceLabeling fiber
    9Special wrench1 pieceFixing octagonal nut (plastic)
    10

    Buffer tube


    To be decided by customersHitched to fibers and fixed with FOST, managing bufferConfiguration as per requirement
    11Desiccant1 bagPut into FOSC before sealing for desiccanting air.

    3. Necessary tools for installation

    3.1 Supplementary materials (to be provided by operator)

    Name of materialsUsage
    Scotch tapeLabeling, temporarily fixing
    Ethyl alcoholCleaning
    GauzeCleaning

    3.2 Special tools (to be provided by operator)

    Name of toolsUsage
    Fiber cutterCutting off fibers
    Fiber stripperStrip off protective coat of fiber cable
    Combo toolsAssembling FOSC

    3.3 Universal tools (to be provided by operator)

    Name of toolsUsage and specification
    Band tapeMeasuring fiber cable
    Pipe cutterCutting fiber cable
    Electrical cutterTake off protective coat of fiber cable
    Combination pliersCutting off reinforced core
    ScrewdriverCrossing/Paralleling screwdriver
    Scissor
    Waterproof coverWaterproof, dustproof
    Metal wrenchTightening nut of reinforced core

    3.4 Splicing and testing instruments (to be provided by operator)

    Name of instrumentsUsage and specification
    Fusion Splicing MachineFiber splicing
    OT DRSplicing testing
    Provisional splicing toolsProvisional testing

    Notice: The above-mentioned tools and testing instruments should be provided by the operators themselves.
