    LC/UPC 2 In 2 Out CWDM OADM Add Drop Multiplexer

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : CWDM OADM
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 5~7 Business days
    • Product Details
    • Company Profile

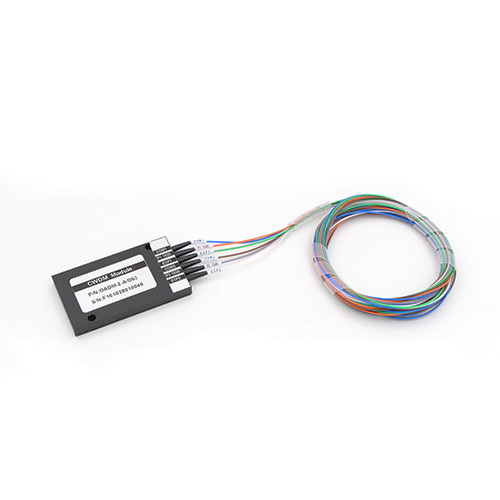

    LC/UPC 2 In 2 Out CWDM OADM Add Drop Multiplexer

    CWDM OADM add/drop Multiplexer 2 in 2 out

    CWDM/AD modules are Course Wave Division Multiplexing (CWDM) Optical Add/Drop Multiplexers (OADM). The CWDM/AD modules add (multiplex) and drop (demultiplex) chosed channels, or wavelengths, on both directions (east and west) or one direction (east or west) of a CWDM common fiber link. The technology enables intelligent planning and flexible provisioning of optical services while simplifying the deployment and maintenance of optical networks. Access points can be added to linear, bus, and ring networks, where the east and west ring design provides redundant protected architecture.


    Features
    Multiplexing of up to 1 channel on fiber pair
    Low insertion loss, splice/pigtailed ABS module low profile modular design
    Secure physical separation between data channels
    Transparent operation - protocol and topology independent
    Passive, no electric power required
    Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit
    Wide Operating Wavelength: 1270nm ~ 1610nm
    Operating Temperature: 0℃ to 70℃


    Applications
    CWDM System
    PON Networks
    CATV Links


    Parameters1CH2CH4CH8CH
    Center Wavelength (nm)ITU, ITU+1
    Operating Wavelength (nm)1260~1620
    Channel Space (nm)20
    Fiber TypeSMF-28e or customer specified
    IL(dB) (P/A Grade)Add&Drop Channel0.5/0.60.7/1.01.4/1.72.0/2.5
    Express Channel0.6/0.81.2/1.41.8/2.03.6/3.8
    Isolation(dB)Add&Drop Adjacent Channel30
    Add&Drop Non-Adjacent Channel50
    Express Channel25
    Ripple(dB)0.30.30.40.5
    PDL(dB)0.1
    PMD(ps)0.1
    RL(dB)45
    Directivity(dB)50
    Maximum Optical Power (mw)500
    Operating Temperature (°C)0~70
    Storage Temperature (°C)-40~85
