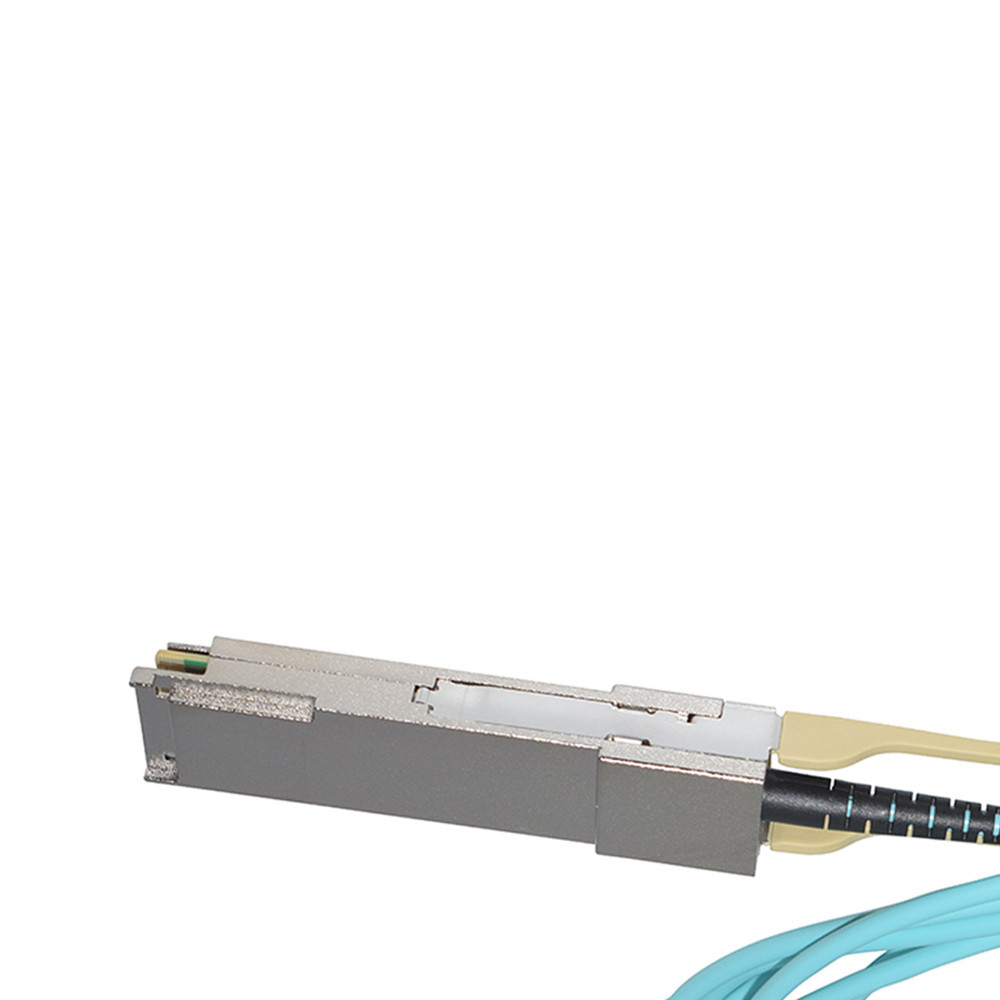

100GBASE QSFP28 AOC Active Optical Cable, 1~100m, MMF OM3/OM4

100G QSFP28 AOC active optical cables are widely used in Data Centers, HPC and SAN. The 100G QSFP28 AOC portfolio includes 100GE QSFP28 AOC Lite, 100GE QSFP28 AOC (CT/IT), 100GE QSFP28 enhanced AOC (CT/IT), 128GFC QSFP28 AOC, and 128GFC QSFP28 enhanced AOC.

Features:

Hot-pluggable QSFP28 form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Compliant with QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4
Compliant with IEEE 802.3ba 40GBASE-SR4 and InfiniBand 4x FDR/EDR
Data rate up to 103.1Gbps
Power consumption < 2.5W per end
Length up to 70m (OM3) or 100m (OM4) over MMF
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications:

100GBASE-SR4 Ethernet
40GBASE-SR4 Ethernet
InfiniBand 4xFDR/EDR
128G/4x32G Fibre Channel
