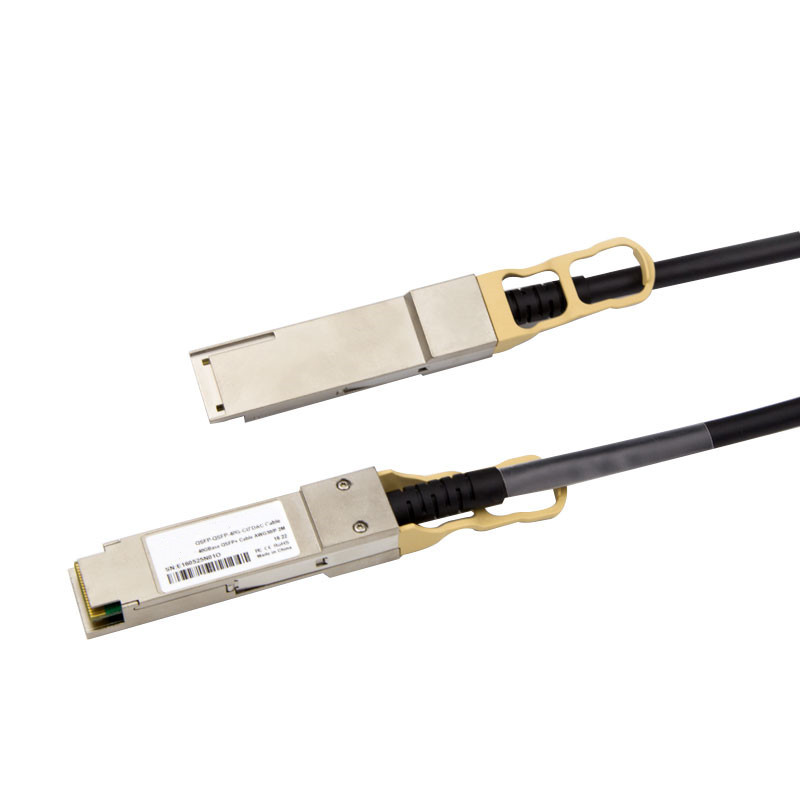

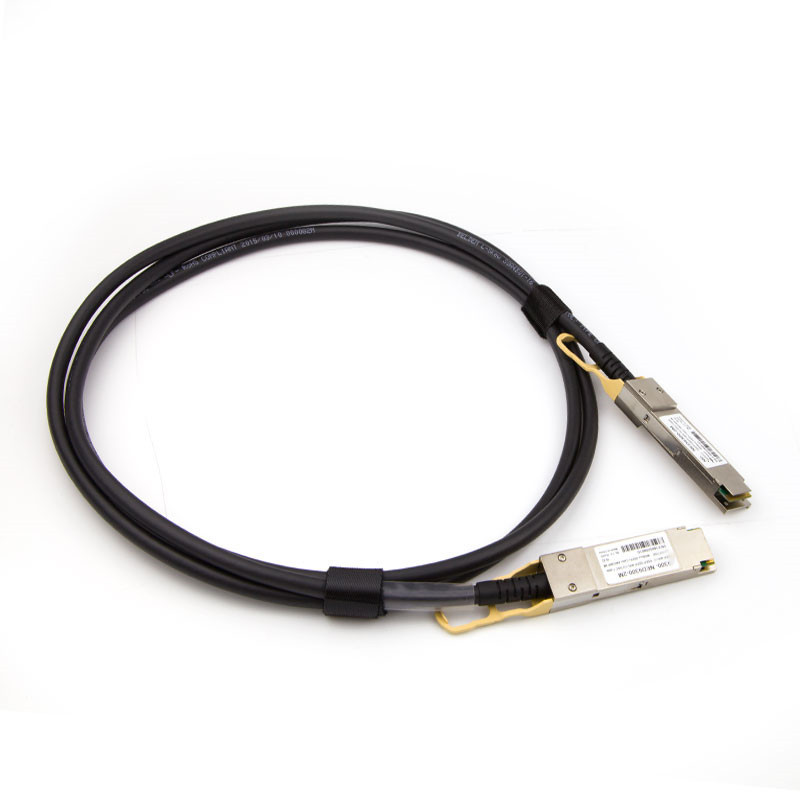

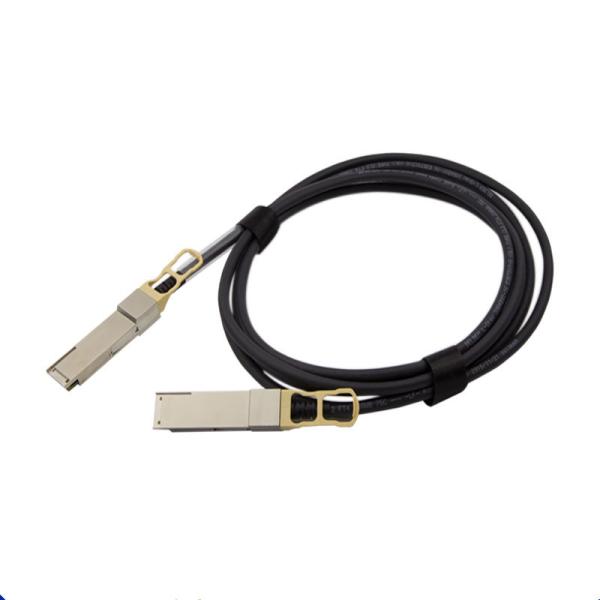

40G QSFP+ to QSFP+ DAC AWG30 Passive Copper cable 1~5m

40G QSFP+ Passive Copper Cbales are customized for an ultra-high performance, cost effective cable solution in 40-Gigabit speed applications including switched fabric I/O, switches, routers, data storage arrays, and high performance computer (HPC) clusters.

Feature
QSFP+ conforms to the Small Form Factor SFF-8436
4-Channel Full-Duplex Passive Copper Cable Transceiver
Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Copper link length up to 5m (passive limiting)
High-Density QSFP 38-PIN Connector
Power Supply :+3.3V
Low power consumption: 0.02 W (typ.)
I2C based two-wire serial interface for EEPROM signature which can be customized
Temperature Range: 0~ 70 °C

Applications
10 Gigabit Ethernet 4
40 Gigabit Ethernet
InfiniBand4x SDR, DDR, QDR
2, 4, 8, 10 Gigabit Fiber Channel
Fiber Channel over Ethernet SAS,Servers,Hubs,Switches,Routers
SFP+ DAC, 40G DAC, DAC Cable
