    SC LC Shuttered Adaptor Drop Cable 4.0mm Fiber Optic Termination Box

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : WTB4
    Certification : ROHS UL CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

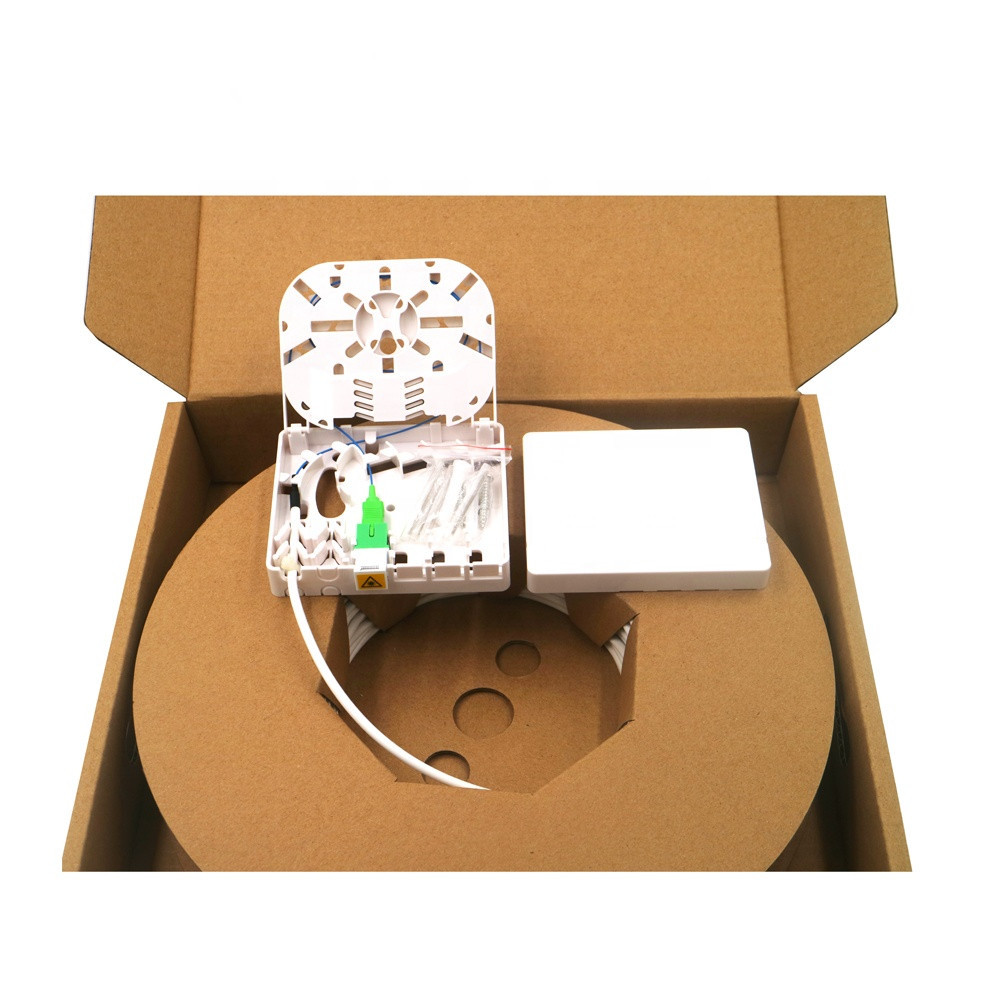

    SC LC Shuttered Adaptor Drop Cable 4.0mm Fiber Optic Termination Box

    Pre-Terminated Wall Outlet Kit 1/2/4 fiber with SC/LC shuttered adaptors,Singlemode G657A2 20/30/50m drop cable 4.0mm

    Preterminated drop cable instegrated with ONT(Optic Network Termination) are designed for FTTH applications.
    Composed of 1,2 or 4 fiber directly connected to SCAPC inside of wall outlet, that provide very quick and secured installation from the subscriber to the floor box or multi dwelling unit, On one side of drop cable are mounted in teh box directly mounted connectors (no splice) and the second side of drop cable is open.Stapling and doorway angle are made possible through appropriate design and integration of fiber with low curvature radius(G657A2)


    Application

    Fiber to the home(FTTH)
    Fiber to the building(FTTB)
    Local area networks
    Wide area networks


    Features
    Easy for installation
    Manager 1,2,or 4 cores in one box
    Installation of wall outlets on wall or DIN rail mounting
    Different length of cable avaliable

    Support termination, splicing and storage for fiber optic cable systems

    Cable on the cardboard and put in a small carton

    Anti-UV, ultra violet resistant and rainfall resistant


    Specifications

    Cable Length20,30,50,70m...or Specify
    Size(mm) W*D*H100.5*80.5*29mm
    ColorWhite
    Cable Ports1/2/4
    Max capacity of splice4(single fiber) for SC, 8port for LC
    Adapter typeSC/UPC, SC/APC,LC/UPC,LC/APC
    MaterialPC+ABS

    SC LC Shuttered Adaptor Drop Cable 4.0mm Fiber Optic Termination BoxSC LC Shuttered Adaptor Drop Cable 4.0mm Fiber Optic Termination Box
