Brand Name : | UNIFIBER-OEM |
Model Number : | UNFSCASCA03 |
Certification : | ROHS |
Price : | Negotiable |
Payment Terms : | T/T, Western Union |
Supply Ability : | 5000pcs/day |
Delivery Time : | 3~5 business days |

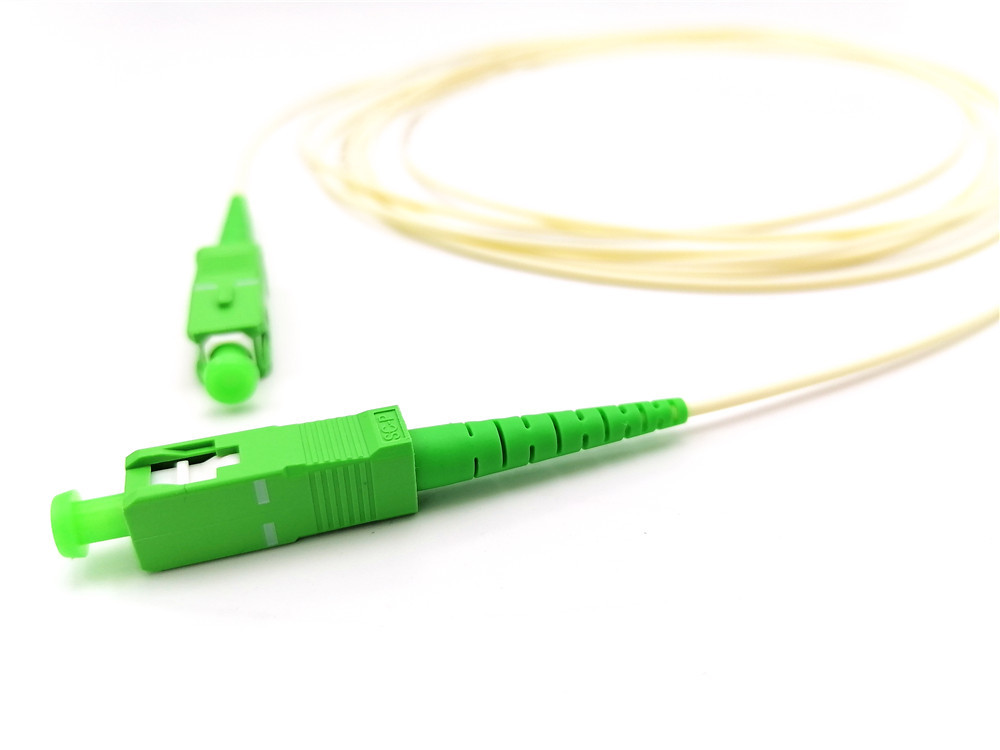

Ivory white patch cable SC/APC to SC/APC 1.6mm G657A2 1/3/5m OFNR/LSZH jacket
The 1.2mm/1.6mm patch cord normally to be used where is limited space, it as other standard patch cable jacketed with PVC/LSZH and then completed with SC. ST. FC or LC connectors. It provides a stable and reliable connection both SM or MM and single or dual fiber. PC, UPC and APC is optional.any color would be ok.
Application:
Data Center hight density cabling
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV.Telecom
Optical Fiber Test Equipment
Features
Superior quality standard PC/UPC/APC polishing;
100% factory test (Insertion Loss & Return Loss);
0.9mm,1.2mm,1.6mm, 2.0mm and 3.0mm cable optional.
Low Insertion Loss
High return Loss
High stability and reliability
Technical Parameters:
Mode | Singlemode |
Connection Style | Simplex |
Connectors | SC APC to SC APC |
Diameter | 1.2/1.6/2.0/3.0mm |
Fiber | 9/125um |
Polish Type | APC |
Typical Insertion Loss | ≤ 0.20 dB |
Maximum Insertion Loss | ≤ 0.30 dB |
![]() |
