H Adapter LSZH Jacket G652D G657A Fibre Optic Cable Connector

Ask Lasest Price
Brand Name :	UNIFIBER or OEM
Model Number :	MINI SC
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10000pcs/day
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

H Adapter LSZH Jacket G652D G657A Fibre Optic Cable Connector

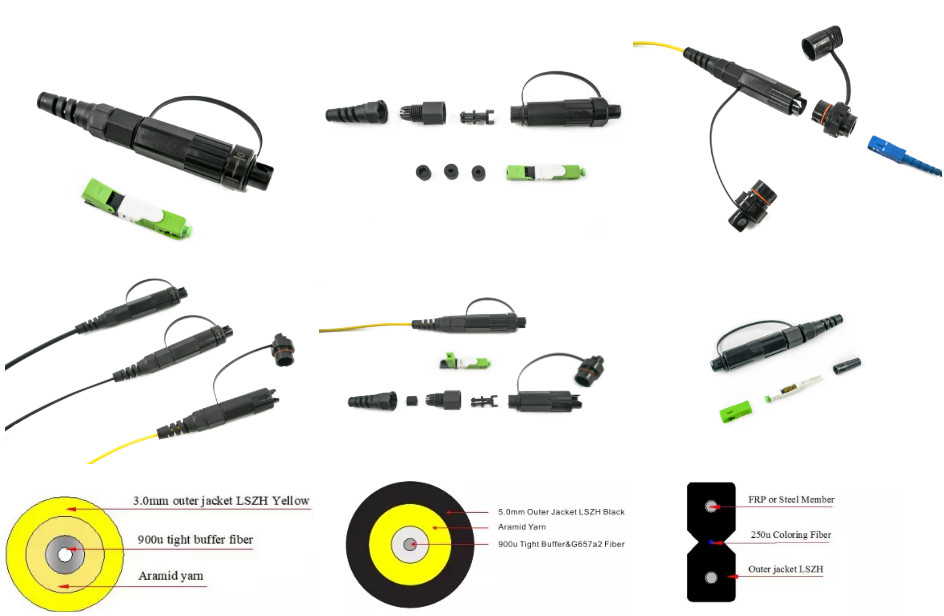

OptiTap mini SC apc quick connector compatible Corning H adapter free fusion use on outdoor quick connection

outdoor filed installable Reinforced SC connector is factory -terminated, environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.it provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable.

Features:

Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments

Designed to reduce the cost and time of drop fiber deployment in the network

Provides superior weather resistance for FTTA and other outdoor applications.

Can be installs without special tooling

100% tested assemblies built in a controlled environment

Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber

Flexibility and reliability provides fast and simple deployments within a network

Provides bend protection for installation and long term use

Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies

Available in multiple fiber lengths to meet all your FTTX design drop deployment

Application:

Fiber to the home (FTTH) connectivity

Outdoor FTTA solutions

Optical access networks

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB
