100% Tested Assemblies Reinforced IP67 Fiber Optic Connectors

Ask Lasest Price
Brand Name :	UNIFIBER or OEM
Model Number :	MINI SC
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	10000pcs/day
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

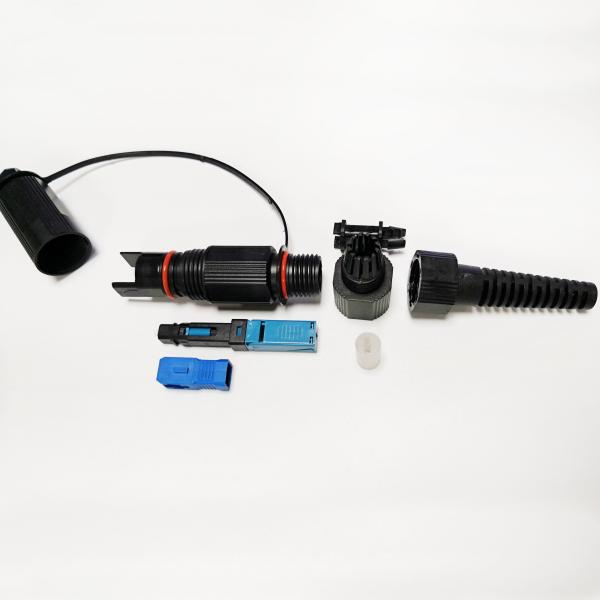

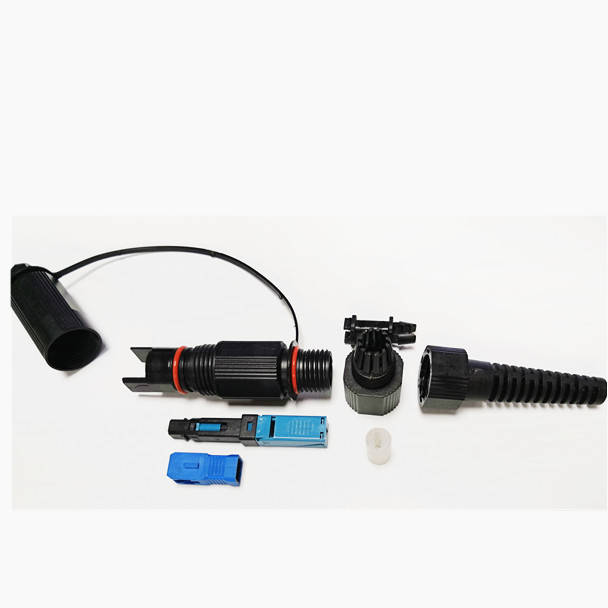

100% Tested Assemblies Reinforced IP67 Fiber Optic Connectors

Field installable reinforced mini sc apc/upc fast connector compatible with corning OptiTap waterpoof connector

Waterproof outdoor Mini SC APC Fast filed assembly connector which compatiable with optitap adapter. Suitable for drop flatcable,3.0mm round cable, 5.0mm round cable.It can compatible with Corning OptiTap H connector and adapter provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.Also can compatible with several brand fast connector use widely in FTTX .

Features:

Provides superior weather resistance for FTTA and other outdoor applications.

Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
Can be installs without special tooling
Provides bend protection for installation and long term use

Designed to reduce the cost and time of drop fiber deployment in the network

Faster network roll out and customer installations
100% tested assemblies built in a controlled environment
Lower cost deployment by utilizing plug and play solutions

Flexibility and reliability provides fast and simple deployments within a network

Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber

Available in multiple fiber lengths to meet all your FTTX design drop deployment

Application:

Fiber to the home (FTTH) connectivity

Outdoor FTTA solutions

Optical access networks

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB

100% Tested Assemblies Reinforced IP67 Fiber Optic Connectors
