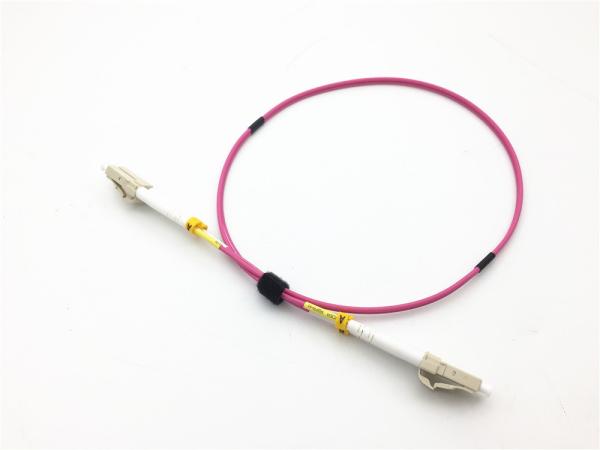

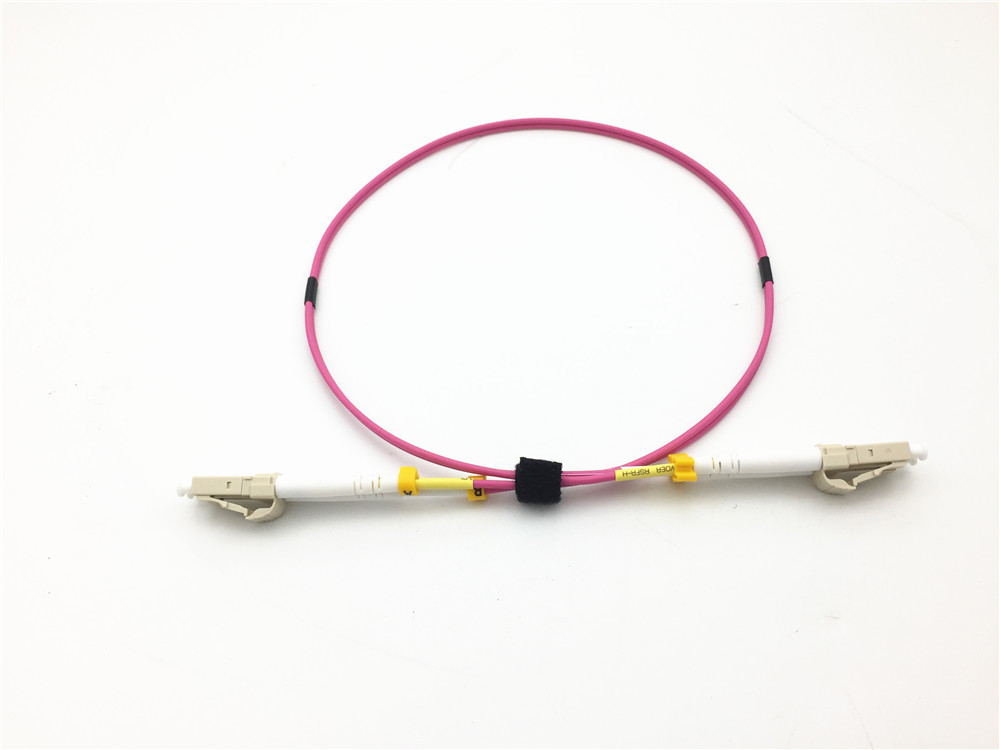

OM4 50/125 LC-LC Multimode Fiber Optic Patch Cable Duplex 2.0mm PVC/OFNR/LSZH 0.5m 1m 1.5m
50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. widely used for 10G/40G/100G high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.UNIFIBER build this with various length of 0.5m 1m 1.5m 2m 3m 5m 7m 10m or others.
APPLICATION
Data centers
Enterprise networks
Telecom room
Server farms
Cloud storage networks
FEATURES Supports 100 Gigabit data rates
Ceramic ferrules provide precise alignment
OFNR (Riser) jacket complies with stringent building codes
Connectors utilize a PC polish
Used to connect patch panels and/or network devices that require OM4, 50/125 multimode cabling
Parameters
| Connector | LC to LC | Jacket OD | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM4 |
