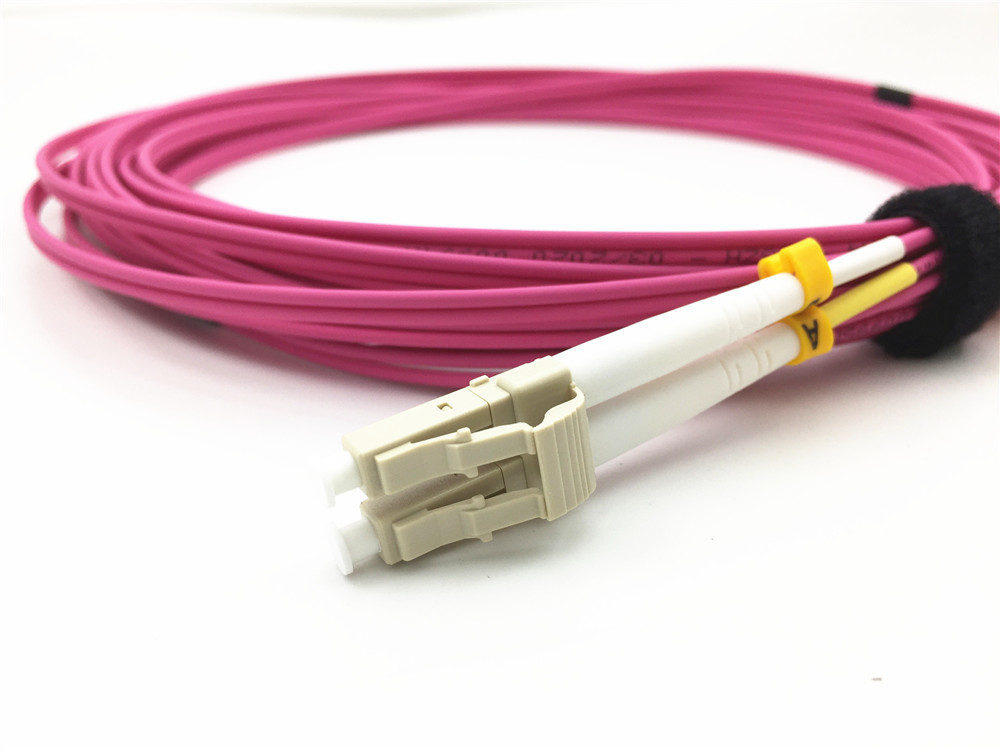

LC-LC OM4 Multimode Fiber Jumper Cable Duplex 3m 5m 7m PVC (OFNR) 2.0mm for 40G/100G high density cabling
This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
FEATURES
High-quality connectors and Zirconia Ceramic Ferrule
Low insertion Loss and High Return Loss
Enhanced optical performance to meet telecom requirement
IEC, EIA/TIA and Telcordia compliant
RoHS, REACH and SvHC compliant
APPLICATION
Telecom room
Server farms
Cloud storage networks
Data centers
Enterprise networks
Parameters
| Connector | LC to LC | Jacket OD | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM4 |
