    SC APC 10/15/20 Meters Pre Connectorized Fiber Optical Patch Cord

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : MINI SC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

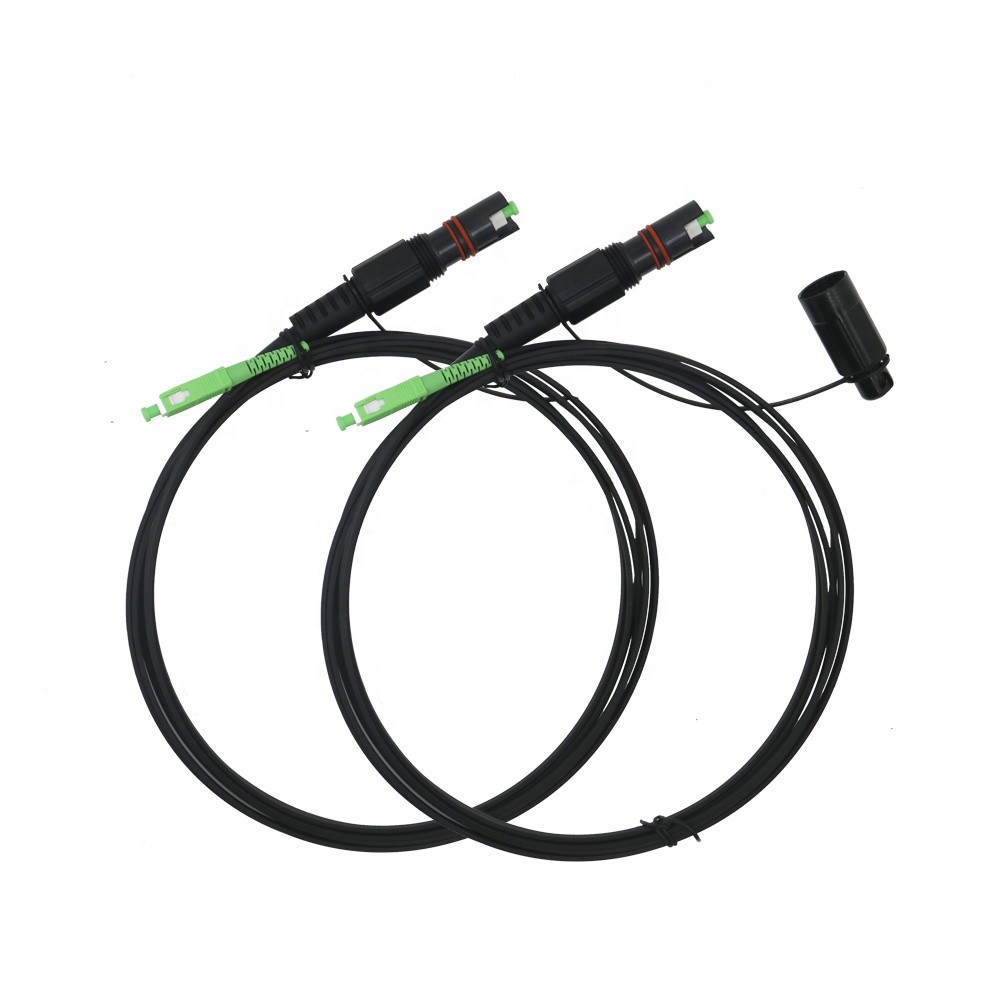

    SC APC 10/15/20 Meters Pre Connectorized Fiber Optical Patch Cord

    Corning OptiTap drop cable patch cords pre-connectorized with hardened mini SC APC 10/15/20/30/50/100/150 meters for FTTH FTTA FTTX

    Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
    The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications.


    Feature

    Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
    In-line connection available

    Single fiber, SC-based connector

    Rodent resistant IP67 water and dust protection

    Low profile in-line receptacle available
    No installation tools required

    Application

    FTTH,FTTA,FTTX
    Access Network
    Telecom/CATV Systems
    HUAWEI CPRI

    Type
    SM-UPC
    SM-APC
    MM-UPC
    Typical
    MAX
    Typical
    MAX
    Typical
    MAX
    Insertion loss
    ≤0.1
    ≤0.3dB
    ≤0.15
    ≤0.3dB
    ≤0.05
    ≤0.3dB
    Return loss
    ≥50dB
    ≥30dB
    ≥30dB
    Durability
    500 mating cycles
    Working temperature
    -40 to + 85℃

    SC APC 10/15/20 Meters Pre Connectorized Fiber Optical Patch CordSC APC 10/15/20 Meters Pre Connectorized Fiber Optical Patch CordSC APC 10/15/20 Meters Pre Connectorized Fiber Optical Patch Cord
