    LSZH Sheath SC APC Waterproof G657A1 Fiber Optical Patch

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : UNFWSCA
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

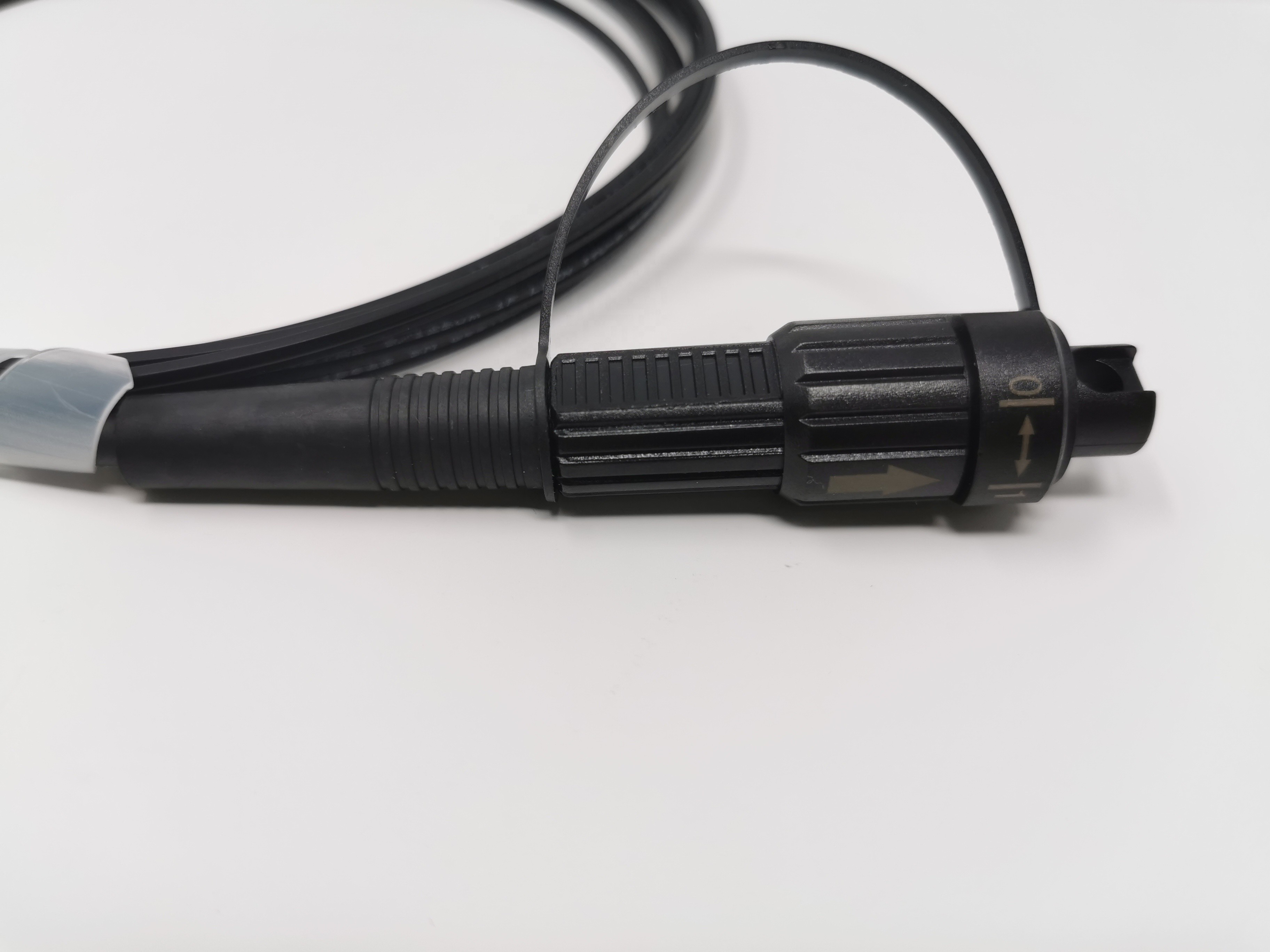

    LSZH Sheath SC APC Waterproof G657A1 Fiber Optical Patch

    Huawei mini SC APC waterproof fiber optic patch cord for FTTH outdoor drop cable G657A1 LSZH sheath 30/50/100/150 meters

    Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.This connector always come with 2.0*30.mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable. UNIFIBER also provide another mini SC connector with Corning Optitap connector compatiable.


    FEATURES
    Simple assembly requiring no special tools ·
    Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal

    Cost effective solution for in house termination
    IP67 Water immersion and Dust protection for hash environment ·
    Chemical Resistance


    Application

    Outdoor communication equipment connection

    waterproof fiber equipment SC port
    Remote wireless base station
    FTTx wiring projectFiber optic communications in harsh outdoor environments

    Cable Specification:

    ApplicationAerial, Direct Buried, Duct
    Cable TypeOutdoor Cable
    Fiber TypeG657A1/G657A2/G657B3, customized
    TerminationOne end or both ends
    Product TypeDrop Assemblies
    Connector AHuawei Mini SC APC Connector
    Connector BNo connector, SC APC or Huawei Mini SC APC Connector
    Cable LengthCustomized
    Operation Temperature-40 °C to 70 °C (-40 °F to 158 °F)
    Insertion Loss≤0.2dB
    Return Loss≥55dB

    LSZH Sheath SC APC Waterproof G657A1 Fiber Optical PatchLSZH Sheath SC APC Waterproof G657A1 Fiber Optical Patch
