Brand Name : | UNIFIBER |
Model Number : | FTB12/24 |
Certification : | ROHS |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 1000pcs/day |
Delivery Time : | 5-7 days |
Indoor wall mounted metal terminal box fiber optic 12/24 ports SC/APC, 2-Door 4-Adapter Panel
GP(05) series are available for small capacity communication
system,wall mounting, reasonable and compact structure, harmonized
with machine room.The cabinet is composed of two parts,one links
with optical cables for fusion connection between optical cable and
fiber pigtail and another links with patch cord.Provide fusion and
storage application for optical cables Reliable protection
appliance of fixing,stripping and earthing for optical cables.Whole
range protected design for fiber lay to ensure the bending
radius=40mm
Provide various accessories to avoid any unexpected damage to the
fiber.
Features
Reliable device to strip,protect,fix and earth optical fiber
Suitable for 6,12 , 24 and 48 fiber connection
Splice adoptst separate sructure, it is convenient for expansion
and maintenance
Double-door design for easy installation and maintenance
Application
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks

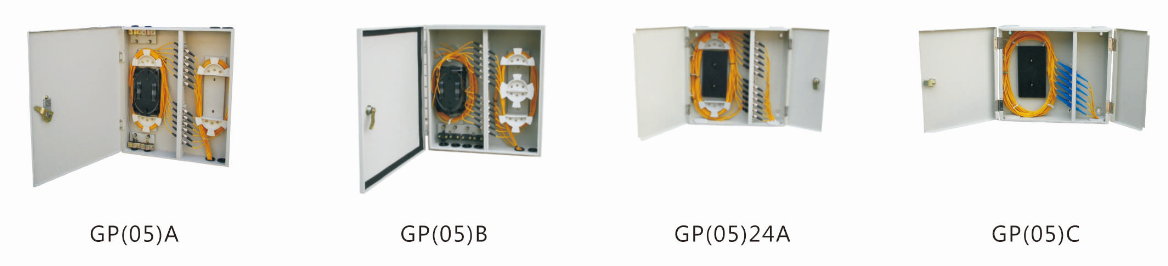

Type | Size(mm) H*W*D | Max capacity | Outer carton dimension | Outer cartion weight |
GP(05)A-24 | 455*405*80 | 24 | 500*450*490/4pcs | 29.5 |
GP(05)A-48 | 455*405*120 | 48 | 500*450*490/3pcs | 25.3 |
GP(05)A-72 | 455*405*150 | 72 | 500*450*390/2pcs | 19.5 |
GP(05)B-48 | 455*405*120 | 48 | 500*450*490/3pcs | 27 |
GP(05)B-72 | 455*405*150 | 72 | 500*450*390/2pcs | 20.5 |
GP(05)A-24A | 350*350*80 | 24 | 405*405*605/5pcs | 20.8 |
GP(05)B-24B | 455*405*80 | 24 | 500*450*490/4pcs | 29 |
GP(05)C | 350*300*80 | 12 | 405*355*605/5pcs | 19.5 |
GP(05)D | 350*300*80 | 24 | 405*355*605/5pcs | 19.5 |
![]() |
