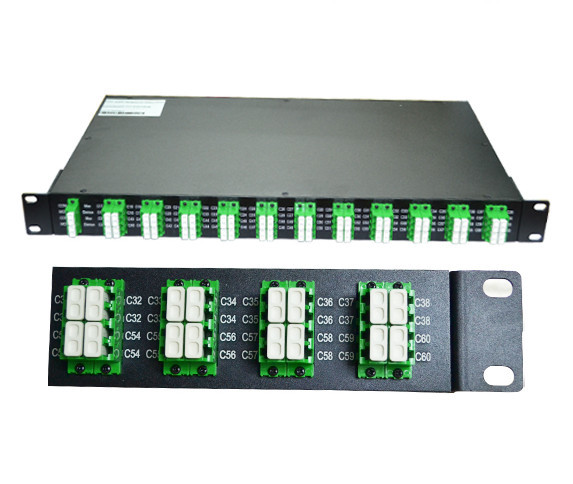

AAWG Module 40 Channels C21-C60 Dual Fiber DWDM Mux Demux, FMU 1U Rack Mount,with 1310nm and Monitor Port for 5G Network

The 40ch Mux Demux is a high density, low loss and standalone passive optical module. It is based on a-thermal AWG technology with Gaussian shaped pass bands. By providing access up to forty 100GHz spaced channels in a 1U package, this unit maximizes the capacity of the C-band range. In conjunction with the transponders and amplifiers, the 40ch mux demux supports a wide range of architectures from simple point-to-point to amplified ring configurations.

Features

1310nm Port for 40G/100G Business

Monitor Port for Easy Troubleshooting
Advanced AAWG Gaussian Technology
Large channel number
Compact size
High stability and reliability
Low insertion loss, high isolation increase system margin

Applications
WDM transmission
Metro and long haul network

Parameters

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
