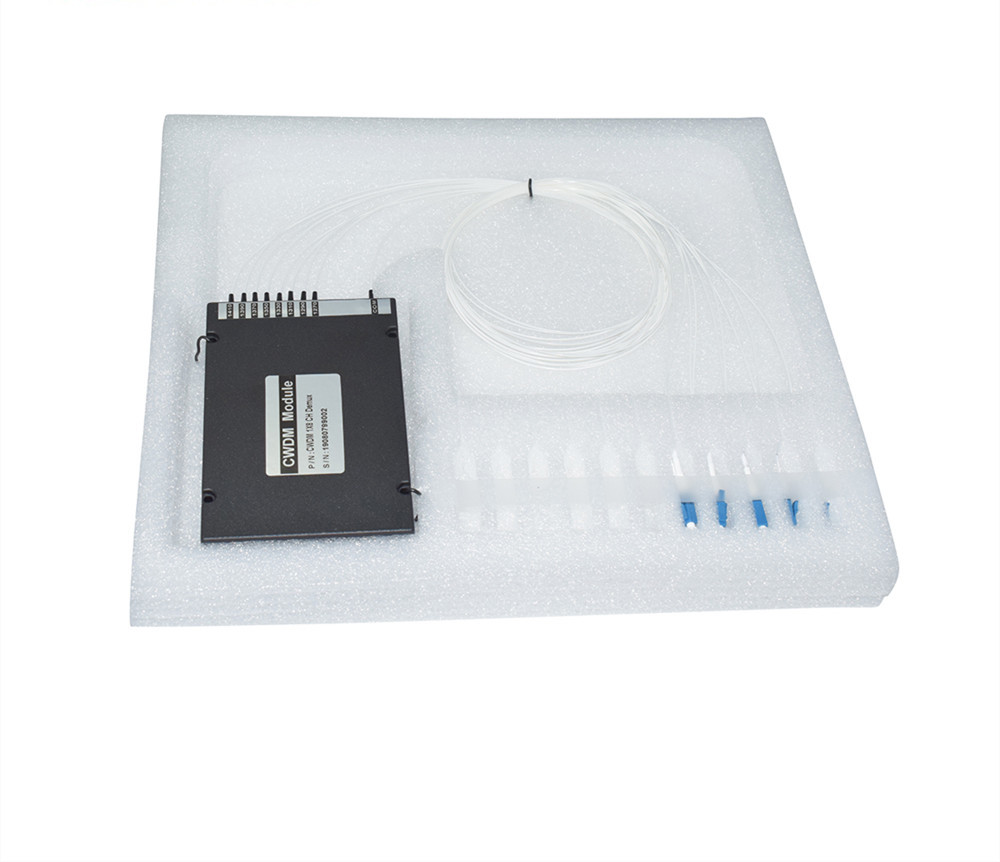

8 Channel mux/demux wavelength division multiplexing(CWDM) Module 1270~1410nm, ABS box, LC/UPC

CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

Features:
Wide Operating Wavelength: 1270nm-1610nm
Wide Operating Temperature: -20 to +70℃

Good channel-to-channel uniformity

Low Insertion Loss
High Isolation
Low PDL

High Reliability and Stability
Compact Design

Applications:
CWDM System
PON Networks
CATV Links

Add/Drop

Parameters:

Above specification are for device without connector.

Ordering Information
