UNIFIBER 1x8 PLC Splitter LGX Module LC/APC Connectors For CATV FTTx PON Solutions

Ask Lasest Price
Brand Name :	UNIFIBER
Model Number :	FBT
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

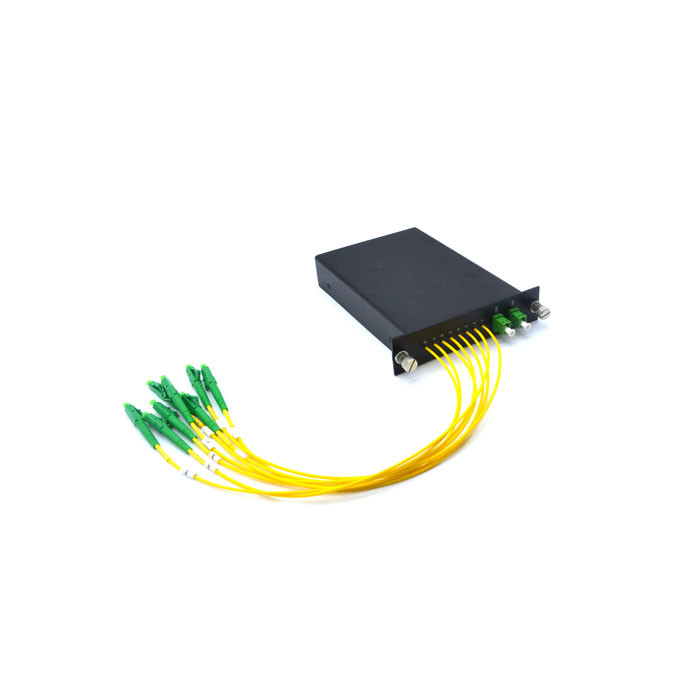

UNIFIBER 1x8 PLC Splitter LGX Module LC/APC Connectors For CATV FTTx PON Solutions

UNIFIBER 1x8 PLC splitter LGX module, 2.0mm, 0.5m, LC/APC connectors,used in CATV, FTTx, PON solutions

LGX PLC splitter module are designed to either stand alone or act as an accessory to an existing rack or wall mount patch panel by easily using standard snap fasteners. This SM LGX Fiber Coupler has a 1×2, 1x4, 1x8 coupling ratio along with your choice of ST, SC, LC or FC fiber connectors. The LGX style packaging makes this optical coupler ideal for applications where you need to Mux or Demux the fibers.

FEATURES

High reliability

Low Insertion loss and Low PDL
Uniform power splitting
Excellent environmental stability
Compact size and various package

APPLICATION

CATV system

FTTX (FTTH, FTTB,FTTU and more) Network

Optical communication systems

Access Network,EPON,GPON or WDM-PON

Specification

Parameters
Parameters	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Loss Uniformit(dB)	0.4	0.6	0.8	1.2	1.5	2	2.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35	0.4
Return Loss(dB)(P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50	55/50
Directivity(dB)	55	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5	0.5
Temperature Stability (-40~85℃)(dB)	0.4	0.4	0.4	0.5	0.5	0.5	0.5
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Device Dimension(mm)	40×4×4	40×4×4	40×4×4	50×7×4	50×7×4	60×12×4	N/A
Module Dimension(mm)	100×80×10			120×80×18	141×115×18
Mini-Module Dimension(mm)	50×7×4			60×12×4	80×20×6	100×40×6	N/A
