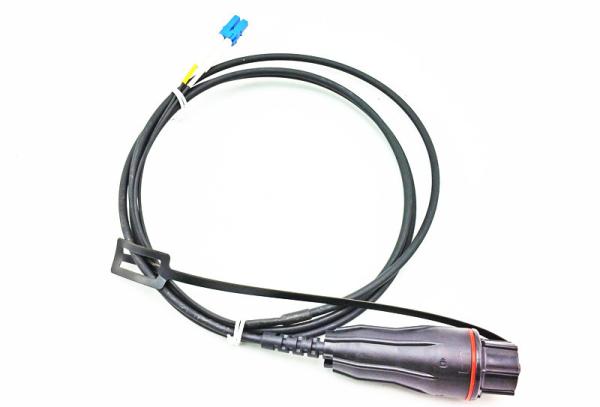

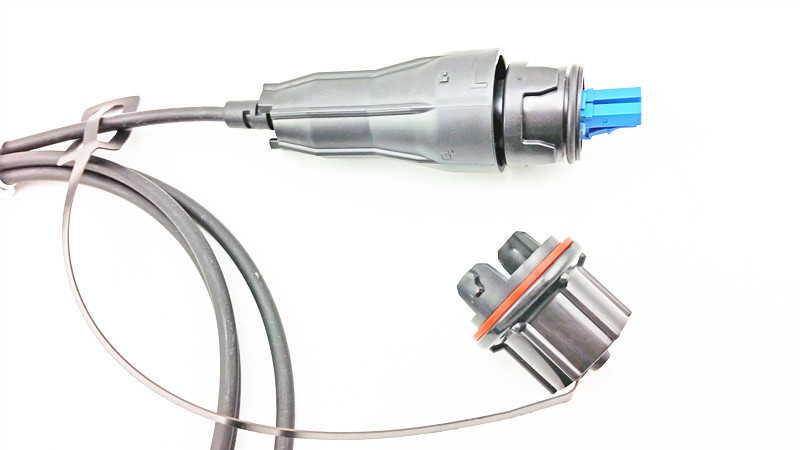

    Single Mode OS2 Fiber Cable Assembly FULLAXS LC Duplex Patch Cord Dustproof

    FULLAXS LC duplex patch cord single mode OS2 outdoor waterproof IP68 FullAXS feeder cable FTTA cpri site installation

    FullAXS-FTTA- strong, connector Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
    With this new line of products, users can also easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.
    For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
    Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
    - is a mechanical feedback to inform the operator when the connector completely docking
    During or after installation, no cable buckling
    - powerful bayonet locking, convenient, fast, secure mating
    - a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
    - cost savings by eliminating the fiber in the management of the radio unit
    The antenna feeder is connected to the specifications of the optical fiber.


    Feature:
    Open bulkhead for easy access to SFP
    Positive feedback to operator when fully mated
    One-hand mating
    Duplex LC interface
    Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
    Robust bayonet locking for easy, fast, and secure mating
    Multimode and singlemode
    Water proof, dust proof and corrosion resistant
    Expansion to RJ45, etc
    Plug has tolerance free design, fully free floating in Z-axis
    No Cable buckling at any time during or after installation
    Cost effective glass-filled polymer or metal die casted bulkhead
    Field installable version available


    Specifications

    Product Name :FULLAXS Compatible LC DX Connector, Waterproof Fiber Optic Connectors
    ModelFULLAXS LC -LC/4-56-78
    1. A endFULLAX Compatible LC DX Connector
    2. A end polishAPC/ UPC.
    3. B endSC FC, LC, ST, E-2000, MTRJ, MU
    4. B end polishPC, UPC, APC.
    5. Fiber TypeG652D; G657A1; G657A2...
    6. Cable Type5.0mm armored or non-amored etc.
    7.Cable JacketLSZH, PE
    8. Length1m, 2m,3m,5m etc..
    Other further info.

    Fiber brand ( Y=YOFC; C=CORNING; O=OFS, etc.)

    Cable Purpose (G=OFRG; R=OFNR; P=OFNP )

    Cable Tensile Strength
